Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Q345 GR65 SS400 | Wind Speed: | 35m/s |
|---|---|---|---|
| Origin Of Place: | Yixing | Type: | Burial |
| Surface Treament: | Hot Dip Galvanization | Galvanization Standard: | ASTM A123 |
| Welding: | AWS D1.1 | Warrenty: | 30 Years |
| Lifetime: | 50 Years | ||
| High Light: | distribution steel tubular electric pole,350kg steel tubular electric pole,steel power pole 11m |
||
Specifications:
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
| Torlance of the dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data |

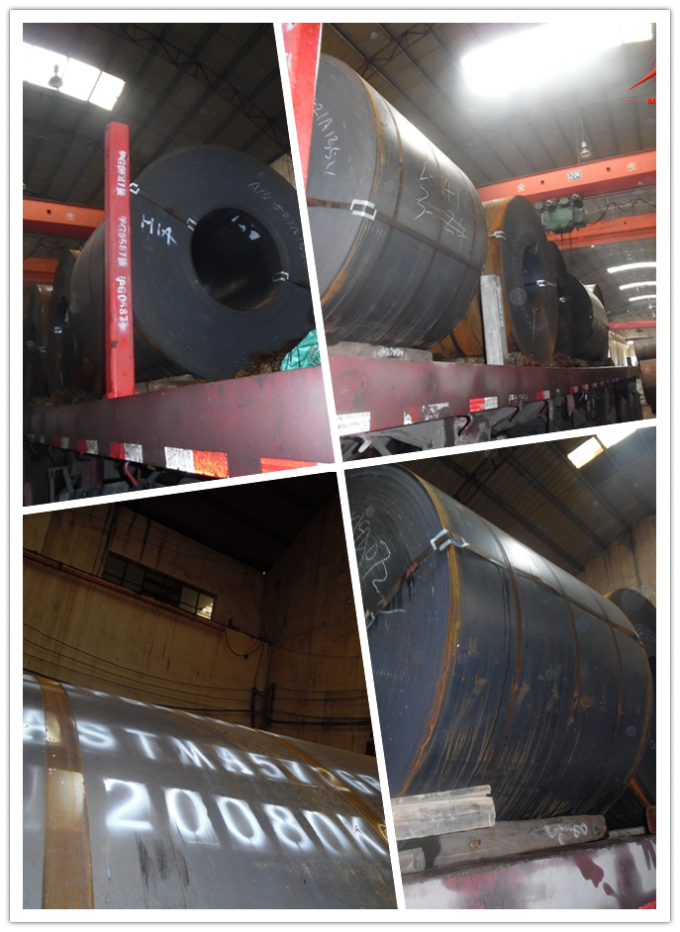

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel

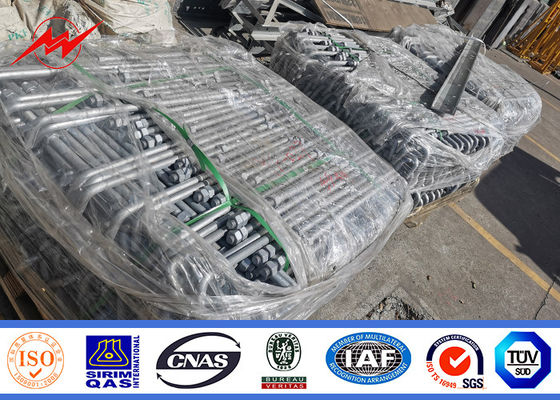

3. Fastened bolts and nuts of stainless steel

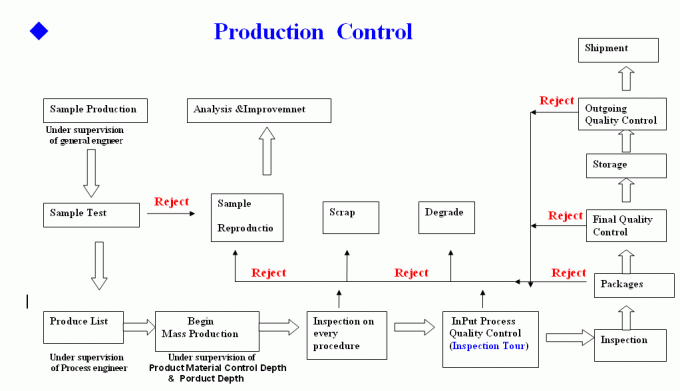

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

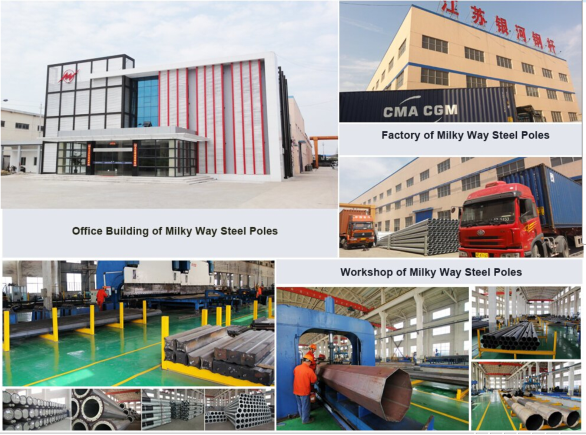

Company History
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
