80FT 3sections 1200kg/1680kg/2000kg Philippines NGCP Standard Electric Steel Poles Column

80FT 3sections 1200kg/1680kg/2000kg Philippines NGCP Standard Electric Steel Poles Column

Description

1. Top diameter:200mm

2. Bottom diameter:560mm

3. Thickness:5mm

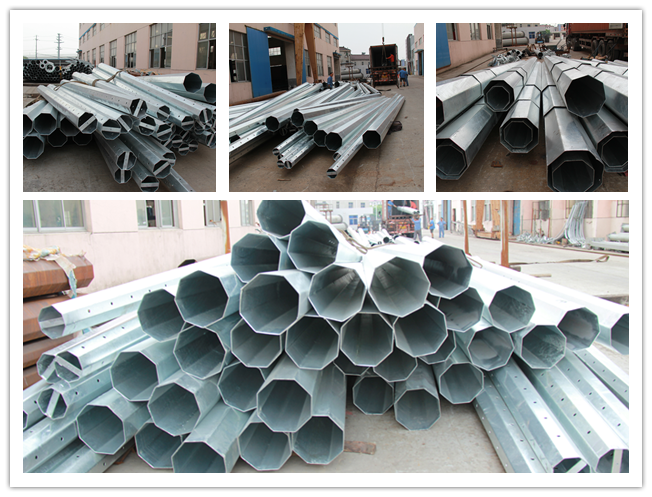

4. Shape:Octogonal

5. Material:Q345

Production Progress

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Package

Advantage

Excellent performance:

Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.

Installation

The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.

Environment

Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.

Maintenance

The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.

Production

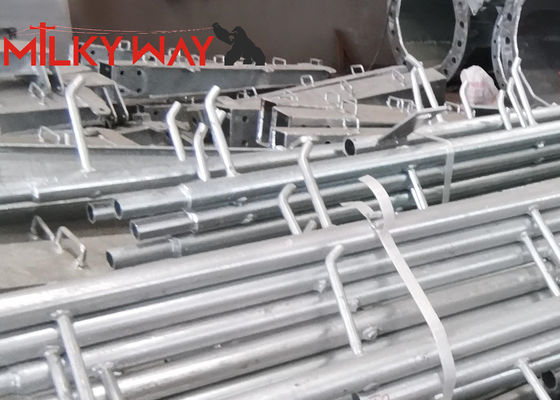

our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.

Galvanization

The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)

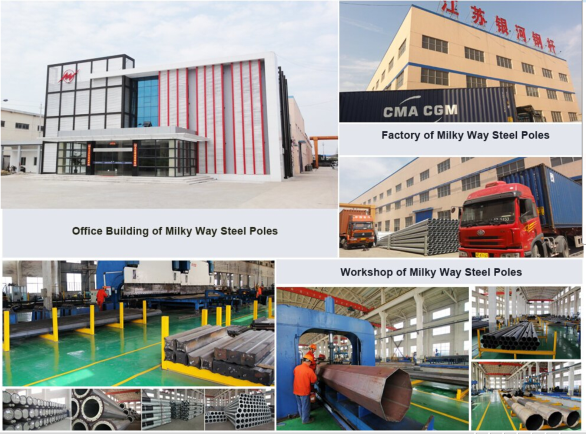

Company Introduction

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

Installation

1. Remove all the equipment on the pole during Assembly.
2. Circle a sling around th epole shaft of each section.
3. Fix the sling on top section to one pulley block.
4. The sling on the bottom section is tightly fixed and fixed at the center of gravity.
5. Make the steel pole vertical by tighten the sling of the top section.
6. Fix the steel pole.
7. Remove the sling.

Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
