|Type:||Straight Pole, Tensile Pole,turn Pole||Suit For:||Electricity Distribution|
|Power:||10kv~550kv||Length Of Per Section:||Within 14m Once Forming Without Slip Joint|
|Wind Speed:||160km/h, 30m/s||Welding Standard:||AWS D 1.1|

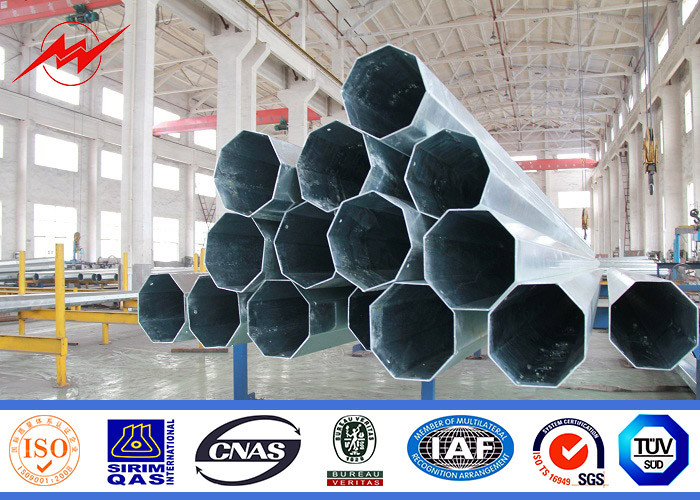

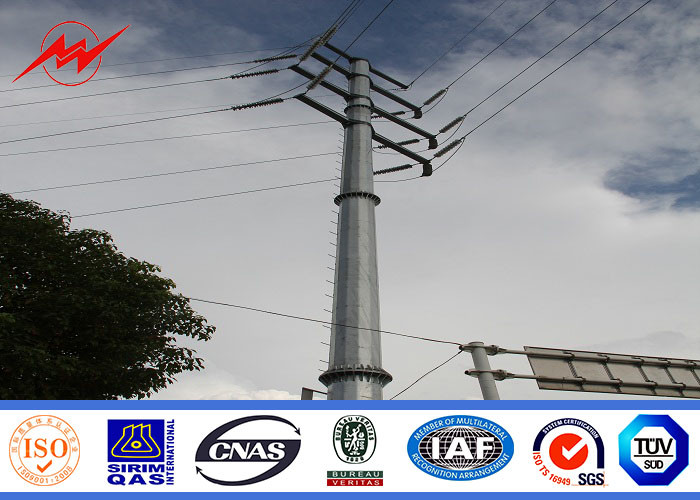

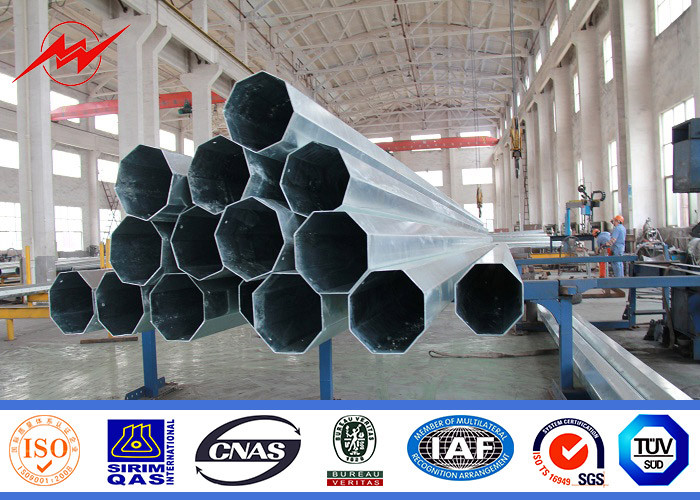

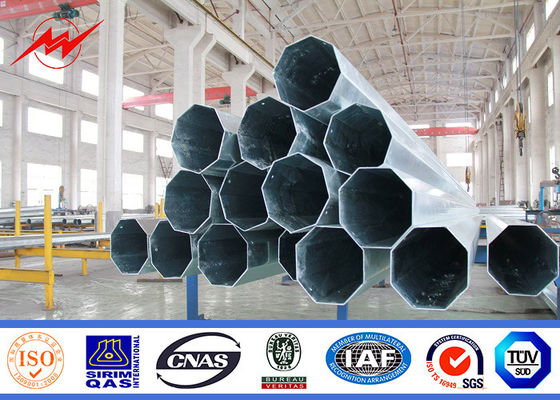

metal power poles,
electric utility poles
The designing weight of the steel poles are usually relatively light and is good for the operation, transportation, assemble and installation.
The material is in accordance with NF EN 10025 standard and NF EN 10149 standard, it has the following property.
- Yield Strength=355 N/mm2
- Thoughness remains the same under 20 degrees below zero
- Galvanization is in accordance with NFA35503 standard class I
The hot dip galvanization treatment can increase the service life of the steel pole without the environmental pollution and no need for other daily maintenance. The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.

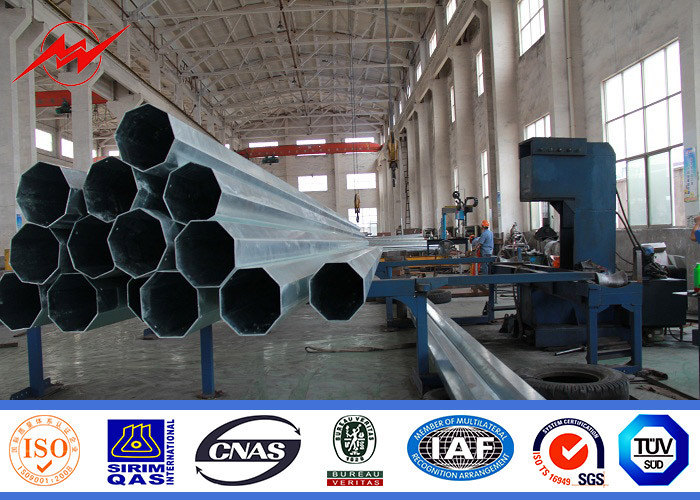

Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic submerged-arc. Then it is welded by the automatic submerged-arc welding machine.
Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support brackets, ladder support, etc.) will be welded to the pole shaft.
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1̊ per 3 meters length
- Ovalisation : Maximum is 3%
- The average diameter : +/-0.5%
-Slip length: +/-150mm
The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.
