12m double arm hot dip galvanized steel pole for street light

China 12m double arm hot dip galvanized steel pole for street light supplier
12m double arm hot dip galvanized steel pole for street light supplier 12m double arm hot dip galvanized steel pole for street light supplier 12m double arm hot dip galvanized steel pole for street light supplier 12m double arm hot dip galvanized steel pole for street light supplier

Large Image :  12m double arm hot dip galvanized steel pole for street light

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: /BV/ISO
Model Number: 12m double arm hot dip galvanized steel pole for street light

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Height: From 6m To 15m Optical Assembly Of Lighting Fixture: IP 65
Warrty: 15 Years Lift Time: 50 Years
Shape: Conoid,multi-pyramidal,columniform,poly Welding Standard: AWS D1.1
Tolerance: +/-2% Material: As Per Customer Request
Type: Hot Dip Galvanized
Highlight:

galvanised steel poles

,

power line pole

Specifications



12m double arm hot dip galvanized steel pole for street light. We are considered to be one of the most professional manufacturers and exporters of Street Lighting Poles. These poles are widely installed on streets. Our offered Street Lighting Poles are wisely manufactured at our state of the art production unit utilizing superior quality of raw materials and components. All the lighting poles are manufactured in accordance with the industrial predefined parameters and guidelines. We offer a wide range of poles in different specifications to our clients at market leading prices.



Height

From 6 m to 15 m



Suit for

Airport ,seaport,plaza,stadium ,square,highway,street way  etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2

               Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Lamp power

20 W- 400 W  (HPS/MH)

220V (+-10%) /50Hz

Torlance of the

dimenstion

+- 2%

Optical assembly

of lighting fixture

IP 65

Electroshock resistant

protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere

of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard

by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate

tensile strength

490 mpa

Max ultimate tensile

strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and external double welding makes the welding beautiful

in shape. Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )

→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr

→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also

can following by client required , each 40HC or OT can loading how many pcs will

calculation base on the client actually specification and data.



Style

Size and styles are veriable as per customer request



Features of Street Lighting Poles :



  • Engineered to perfection employing state-of-the-art production techniques
  • Suitable for use in different types of street lights
  • Excellent durability and very high service life
  • Excellent resistance to temperature fluctuations
  • Non abrasive and anti-corrosive in nature
  • Innovative designs with strong visual appeal



12m double arm hot dip galvanized steel pole for street light 0





Applications Area of Street Lighting Poles

  • Roadside lighting
  • Highway lighting
  • Lighting for traffic control
  • Architectural area lighting
  • Use in telecommunication and cellular towers
  • Lighting sports complexes and stadiums



 12m double arm hot dip galvanized steel pole for street light 1

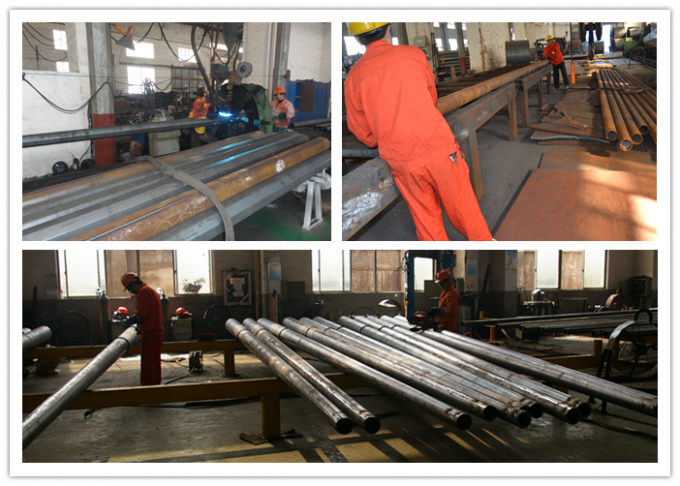

The street light poles of our company are made from quality sheets through bending,forming, automatic welding, hot dip galvanization and powder coating. We owned advanced production-line, it included Flatting machine, Steel plate shearer, bending machine,Auto-closed up machine, submerged arc welding machine and powder coating line, and our workmanship and quality control was achieved high opinion from our clients.



It is made of high quality steel plate that is bent and shaped by large-scale equipment and made through processes of auto welding, hot galvanizing, and alignment.With our modern equipment, we can manufacture various steel poles.



Street light's  lamp panel can be made into various shapes according to different requirements.It could be stationary or elevated automatically, as per customers' requirements.



12m double arm hot dip galvanized steel pole for street light 2



Company Information



Jiangsu Milky Way Steel Poles Co.,Ltd. Is established in 1991, we have specialized in steel poles for more than 24 years old. The projects we have participate in including the 2014 Sochi Olympic Games, Burj Dubai, Dammam Seaport etc.
