Product Details:
Payment & Shipping Terms:
|
Product Name: | 9m Steel Pole,Street Lighting Pole,hot Dip Galvanization Steel Pole | Application: | Power Distribution |
---|---|---|---|
Material: | Gr65 | Minimum Yield Strength: | 460 Mpa |
Max Ultimate Tensile Strength: | 620 Mpa | Wall Thickness: | 1mm-36mm |
High Light: | 625mm Steel Power Pole,6mm Steel Power Pole,16.80m Steel Power Pole |

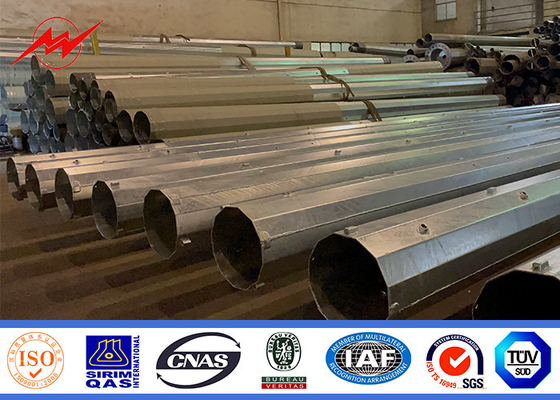

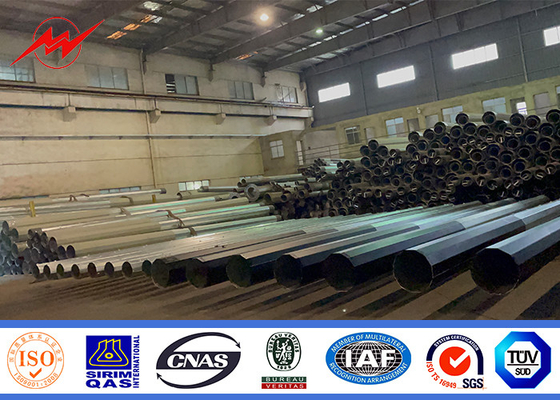

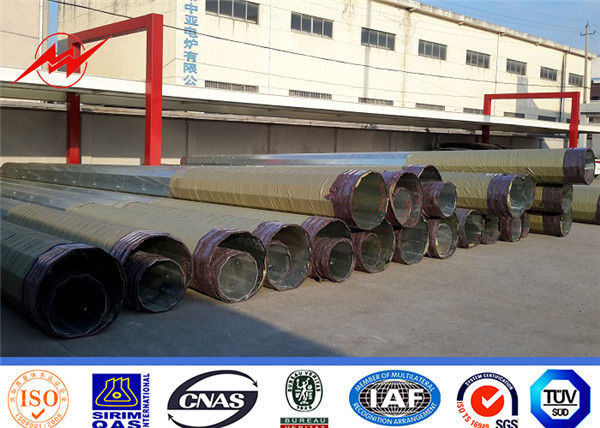

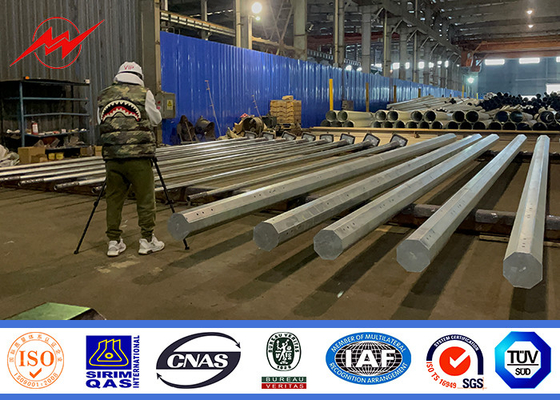

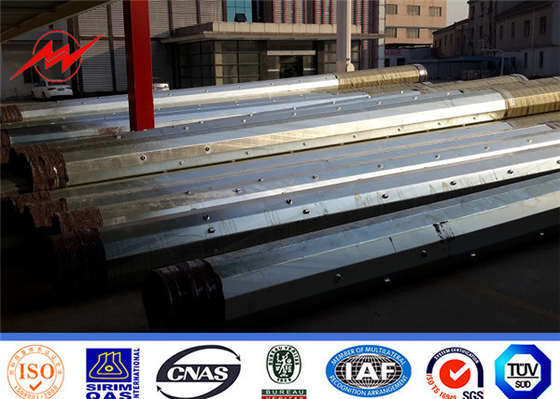

9m Steel Pole,Street lighting pole,hot dip galvanization steel pole
Specifications:
Types Length |
45ft | 50ft | 55ft | 60ft | 65ft | 70ft |
13.75m | 15.25m | 16.80m | 18.30m | 19.85m | 21.35m | |
B ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
E ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
C ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
HS ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
HT ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3T ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is sually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
