69KV 48m Round Galvanised Steel Posts For Transmission Power Line

China 69KV 48m Round Galvanised Steel Posts For Transmission Power Line supplier
69KV 48m Round Galvanised Steel Posts For Transmission Power Line supplier 69KV 48m Round Galvanised Steel Posts For Transmission Power Line supplier 69KV 48m Round Galvanised Steel Posts For Transmission Power Line supplier

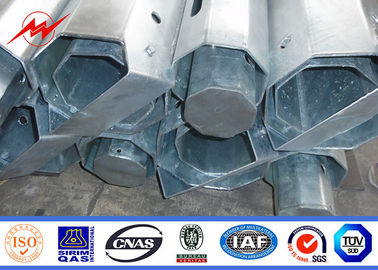

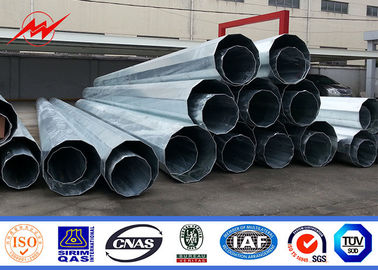

Large Image :  69KV 48m Round Galvanised Steel Posts For Transmission Power Line

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV

Payment & Shipping Terms:

Minimum Order Quantity: ONE CONTAINER
Price: USD 130-180POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Detailed Product Description
MATERIAL: S355JR APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
High Light:

69KV round galvanised steel posts

,

48m round galvanised steel posts

,

Transmission Power Line galvanized light pole

33KV 69kv 12M-48m Electrical Galvanised Steel Pole For  Transmission Power Line



Production Process



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.



Specification

Product name 16m Electrical Steel Tubular Pole For 69kv Transmission Power Line
Material ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard
Design service available,just offer design parameter
Certificate ISO 9001:2008,etc
Destruction test Available
welding method CO2 welding or submerged arc auto welding
OEM Available
Wind pressure 5-300KM/H
Pre-shipment test Available









Production process



Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Package







Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

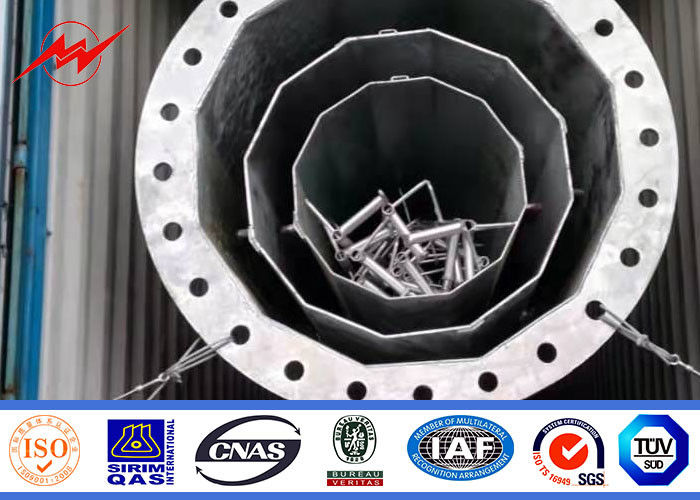

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.







FAQ


Q1. How can I get a price of needed pole?
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.

2. You can send us a drawing; we can give you a price according to your drawing.
Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.

Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to Sino-Gsl.

Q5. Can you make Door to Door service? Because i don't know how to do customs clearance.
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
