69kv 65feet 75feet Steel Power Pole Electrical Q235

China 69kv 65feet 75feet Steel Power Pole Electrical Q235 supplier
69kv 65feet 75feet Steel Power Pole Electrical Q235 supplier 69kv 65feet 75feet Steel Power Pole Electrical Q235 supplier 69kv 65feet 75feet Steel Power Pole Electrical Q235 supplier 69kv 65feet 75feet Steel Power Pole Electrical Q235 supplier

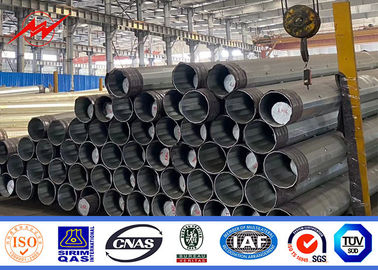

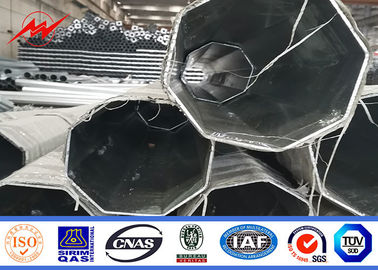

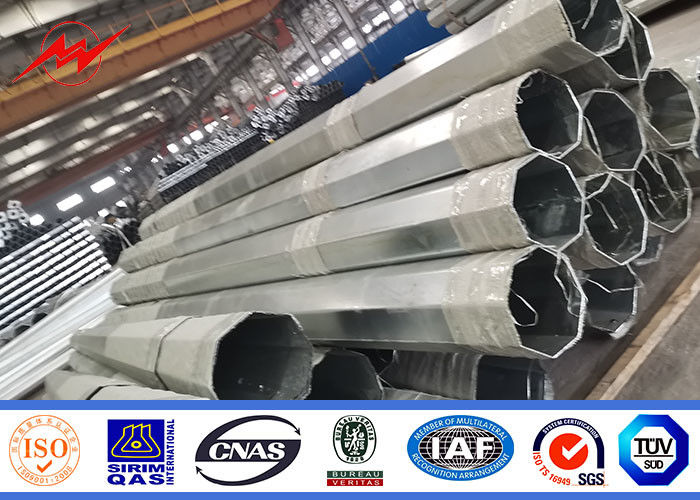

Large Image :  69kv 65feet 75feet Steel Power Pole Electrical Q235

Product Details:

Place of Origin: Jiangsu
Brand Name: milky way
Certification: ISO9001:2015
Model Number: steel pole

Payment & Shipping Terms:

Minimum Order Quantity: 500pieces
Price: USD 1-500/poles
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000per month
Contact Now
Detailed Product Description
Material: Q235 Q345 GR65 SS400 Wind Speed: 35m/s
Origin Of Place: Yixing Type: Burial
Surface Treament: Hot Dip Galvanization Galvanization Standard: ASTM A123
Welding: AWS D1.1 Warrenty: 30 Years
Lifetime: 50 Years
High Light:

69kv steel power pole

,

65feet steel power pole

,

75feet electrical power pole

Specifications:



Height From 9 meter to 100 meter
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Thickness 1 mm to 36mm

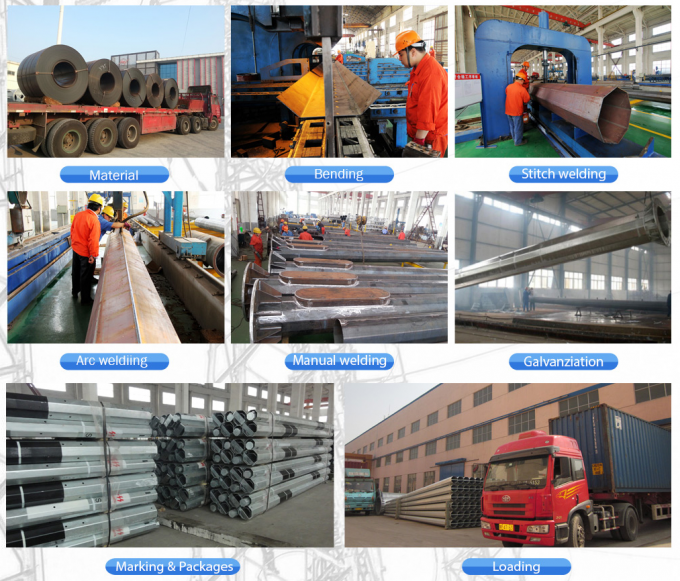

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample

assemble → surface clean→ Galvanization or powder coating ,

painting →Recalibration →Packages

Packages Packing with plastic paper or according to client’s request.





Steel

Descripition of material:The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

69kv 25ft 75ft Galvanized Steel Plate  Steel Power Pole for Electrical Power Transmission and Distribution 0

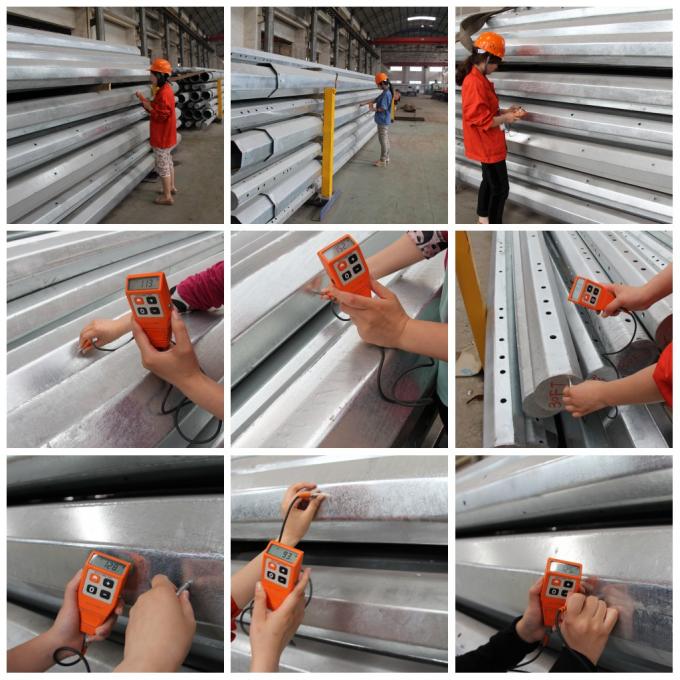

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

69kv 25ft 75ft Galvanized Steel Plate  Steel Power Pole for Electrical Power Transmission and Distribution 1

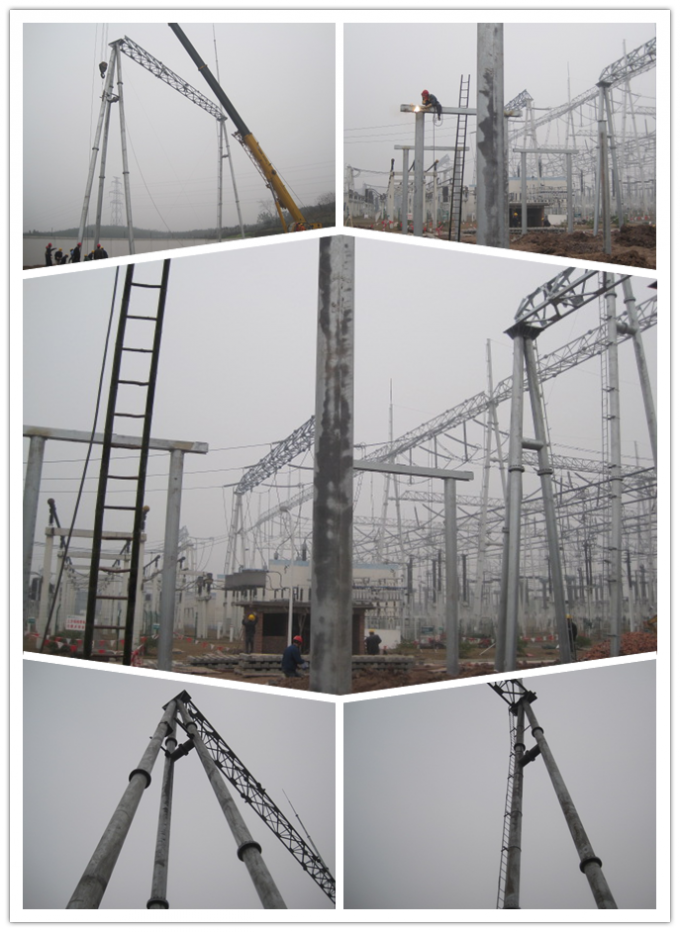

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

69kv 25ft 75ft Galvanized Steel Plate  Steel Power Pole for Electrical Power Transmission and Distribution 2



Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
