7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design

China 7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design supplier
7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design supplier 7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design supplier 7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design supplier 7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design supplier

Large Image :  7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: Street Light Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Detailed Product Description
Outreach Type: Single Or Double Outreach Mounted Type: By Flange Or Without Flange
Light Wattage: 30w To 60w LED Light Material: Q345,Q235,GR50
Surface Treatment: Galvanization And Powder Coating Pole Shape: Round,octagonal
Average Gavanzation Thickness: According To The Pole Thickness
High Light:

steel transmission poles

,

power line pole

7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design



Quick Details for Galvanized Steel Pole



Item No

 7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design

Height

 7m with dual outreach,or other reachout

Thickness

 Econmic thickness is 3mm wall thickness,or customized design are available,3.5mm,54mm

Shape

 According to customer's design or our standard shape such as Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Brakcet Length

 600mm,800mm,1000mm,2500mm

Suit for

 Highway,state highway,garden



Qucik Introduction



Milky Way specializes in fabrication of standard and customized hot dip galvanized accessories:
Polygonal & Conical Poles : up to 15 meters
Octagonal poles : up to 12 meters
Hinged poles: up to 20 meters

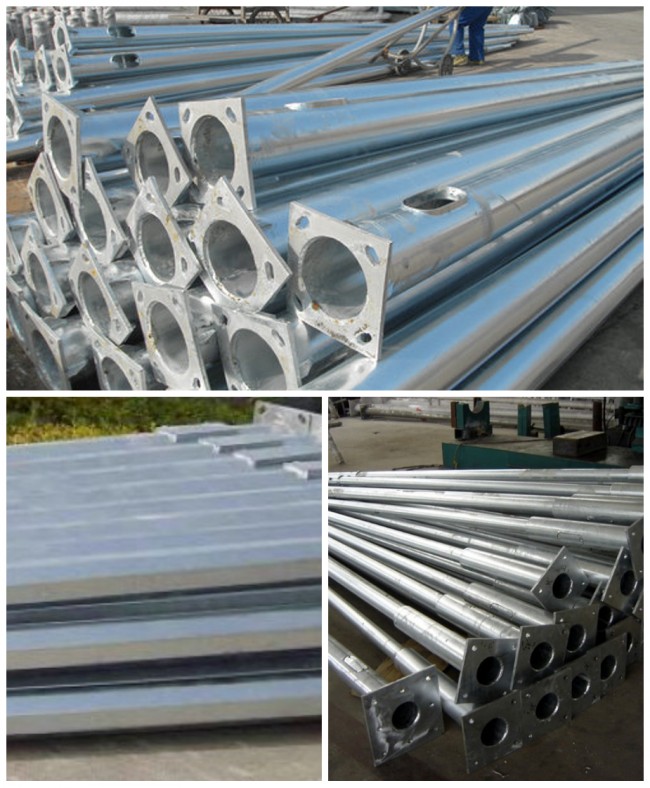

Galvanized Steel Pole Treatment

7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design 0



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.



FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





Pole Accessories



Anchor Bolts

• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"

• Hot dip galvanized

• Supplied as optional product

• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for

24" X 3/4". Higher grades for larger sizes.

• Supplied with hexagon nut and washer



Nut & Bolt Cover

• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.

• High strength polyurethane

• Available in colours



Handhole

•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover

The standard tenon size is 2 3/8" O.D. by 7" long.

Any designs not shown in this catalogue can be produced by Nova Pole International

and inquiries should be communicated to company representatives.

Approval drawings are available on request.

All measurements shown here are imperial measure (inches, square inches and feet)

unless otherwise noted.



Light Type

7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design 1



WORKSHOP

7mm 3mm wall thickness dual outreach Galvanized Steel Pole for highway light design 2





Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
