9M Single Arm Galvanized Steel Pole Q345 Material for high way

China 9M Single Arm Galvanized Steel Pole Q345 Material for high way supplier
9M Single Arm Galvanized Steel Pole Q345 Material for high way supplier 9M Single Arm Galvanized Steel Pole Q345 Material for high way supplier 9M Single Arm Galvanized Steel Pole Q345 Material for high way supplier 9M Single Arm Galvanized Steel Pole Q345 Material for high way supplier

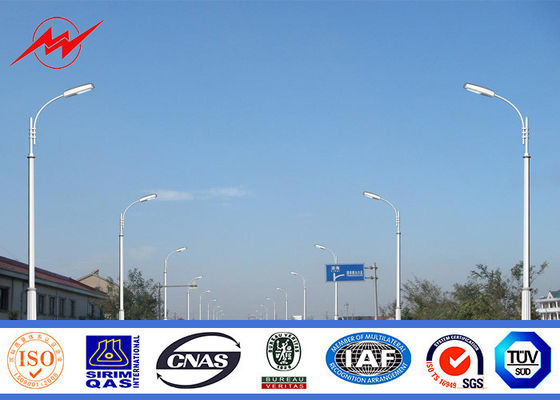

Large Image :  9M Single Arm Galvanized Steel Pole Q345 Material for high way

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Galvanized Steel Pole Application: Road Lighting
Design: Customized Surface Treatment: Hot Dip Galvanization Powder Painting
Dimension Torlance: +- 2% Welding Standard: AWS D 1.1
Galvanization Standard: ASTM A 123 Material: Q235
Highlight:

galvanised steel poles

,

steel transmission poles

 9M Single Arm Galvanized Steel Pole Q345 Material for high way





 Specifications:





Height

From 6 m to 15 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly of lighting fixture

IP 65

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style

Size and styles are veriable as per customer request





 Description:




 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.



 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.





 9M Single Arm Galvanized Steel Pole Q345 Material for high way 0





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages



9M Single Arm Galvanized Steel Pole Q345 Material for high way 1







 Company Introduction:


 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.





 9M Single Arm Galvanized Steel Pole Q345 Material for high way 2
