|Thickness:||1mm To 30mm||Shape:||Conoid, Multi-pyramidal, Columniform, Polygonal Or Conical|
|Power:||10kv~550kv||Wind Speed:||160km/h, 30m/s|
|Tolerance:||+/-2%||Design Load In Kg:||300~ 1000 Kg Applicated To 50cm From The To Pole|
metal light pole,

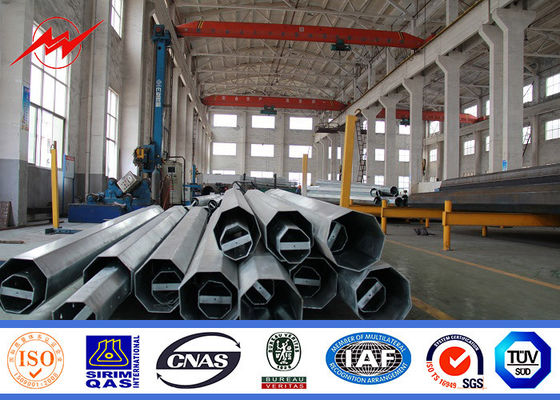

Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.
The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.

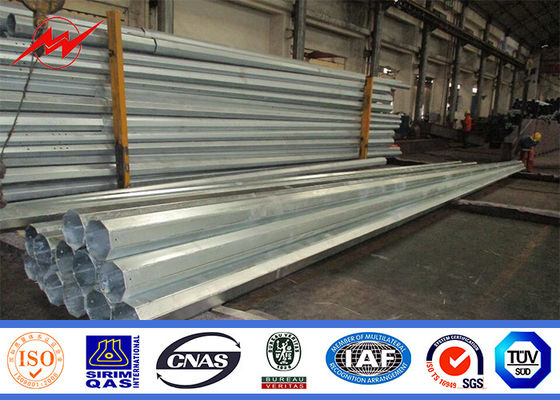

|Product name||132kv Electrical Steel Tubular Pole For Transmission Power Line|
|Material||ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard|
|Design service||available,just offer design parameter|
|welding method||CO2 welding or submerged arc auto welding|
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Package
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
Q1. How can I get a price of needed pole?
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2. You can send us a drawing; we can give you a price according to your drawing.
Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to Sino-Gsl.
Q5. Can you make Door to Door service? Because i don't know how to do customs clearance.
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
