Payment & Shipping Terms:
|Product Name:||Galvanized Steel Power Pole||Application:||Tranmission Line|
|Design:||Customized||Surface Treatment:||Hot Dip Galvanization|
|Welding Standard:||AWS D1.1||Galvanization Thickness:||Average 86um|
galvanised steel poles,
power line pole

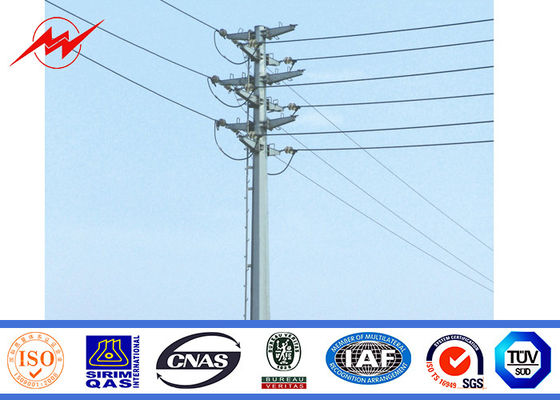

Gr65 Galvanized Steel Pole 14m 110kv Customized Metal Utility Poles
|Height||From 9 meter to 100 meter|
|Suit for||Electric Power Transmission and Distribution|
|Shape||Polygonal or Conical|
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
|Power Capacity||10kV to 220kV|
|Tolerance of the dimension||According to client’s requirement.|
|Surface treatment||Hot dip galvanized Following ASTM A 123, or any other standard by client required.|
|Joint of Poles||Slip joint, flanged connected|
|Length of per section||Within 14 meter once forming|
|Welding Standard||AWS (American Welding Society ) D 1.1|
|Thickness||1 mm to 36mm|
|Production Process||Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages|
|Packages||Packing with plastic paper or according to client’s request.|
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Average thickness of the galvanization:Not less than 86μm.
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
