Q345 Steel Power Pole With Hot Galvanized Anti-Corrosion Treatment

Large Image : Q345 Steel Power Pole With Hot Galvanized Anti-Corrosion Treatment

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	Electric Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 container
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	30 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Product Name:	Steel Power Pole	Application:	Distribution Line
Material:	S355JR= ASTM A572 Gr50	Minimum Yield Strength:	345 Mpa
Max Ultimate Tensile Strength:	620 Mpa	Wall Thickness:	3.8mm 5mm 7mm
High Light:	Hot Galvanized Steel Power Pole , Q345 Steel Power Pole , Anti-Corrosion Treatment Steel Power Pole

Philippine 60FT Q345 4.5mm thickness Steel Power Transmission Pole with bitumn

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

Q345 Steel Power Pole With Hot Galvanized Anti-Corrosion Treatment 0

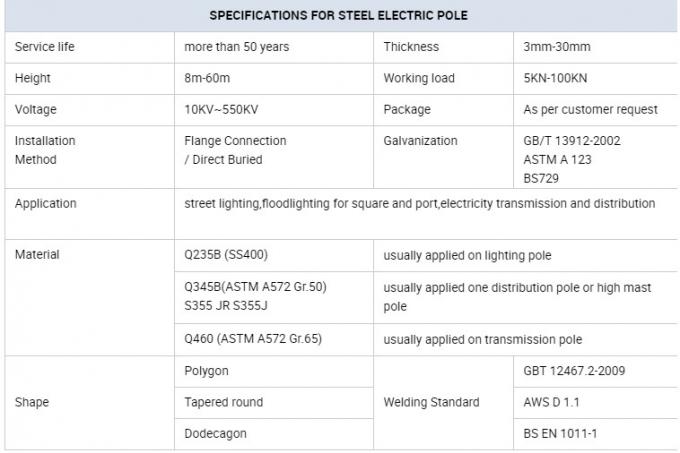

Specification:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

Q345 Steel Power Pole With Hot Galvanized Anti-Corrosion Treatment 1

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

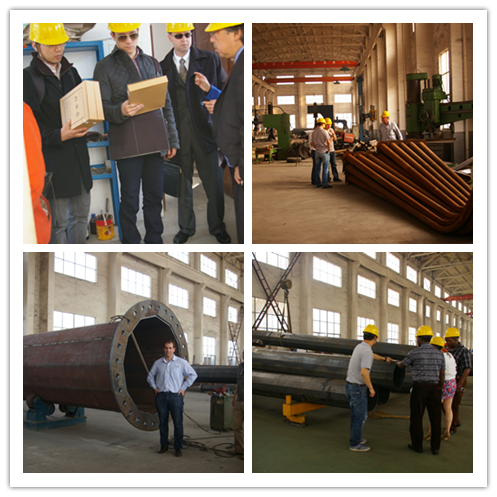

Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.

Q345 Steel Power Pole With Hot Galvanized Anti-Corrosion Treatment 2
