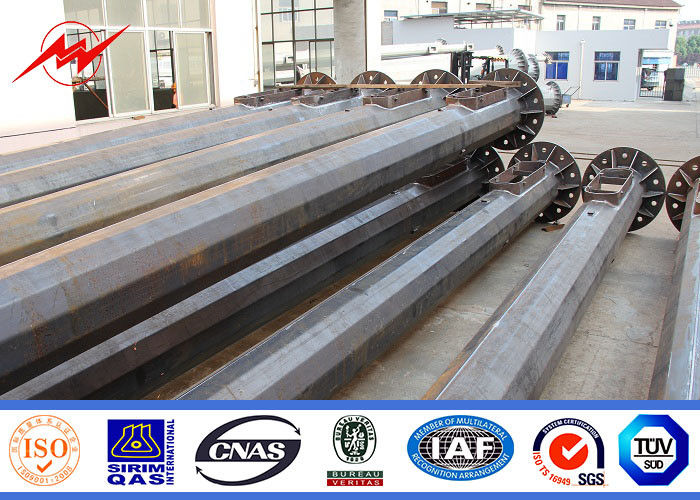

Secure Joint Design For Electrical Power Pole Against Earthquake

Large Image : Secure Joint Design For Electrical Power Pole Against Earthquake

Product Details:

Place of Origin:	Jiangsu
Brand Name:	milky way
Certification:	Iso 9001:2015
Model Number:	yin-he

Payment & Shipping Terms:

Minimum Order Quantity:	1 container
Price:	USD 130-180/piece
Packaging Details:	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time:	always 2 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pieces per month

Contact Now

Detailed Product Description

Height:	13m	Thickness:	1-30mm
Design:	Against 8 Grade Of Earthquake	Color:	White ,silver
Welding:	AWS D1.1	Type:	Flange Type/burial
Certification:	ISO BV	Tolerance Of Dimension:	+- 2%
High Light:	Secure Joint Electrical Power Pole , Earthquake Electrical Power Pole , Joint Design Electrical Power Pole

Specifications:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

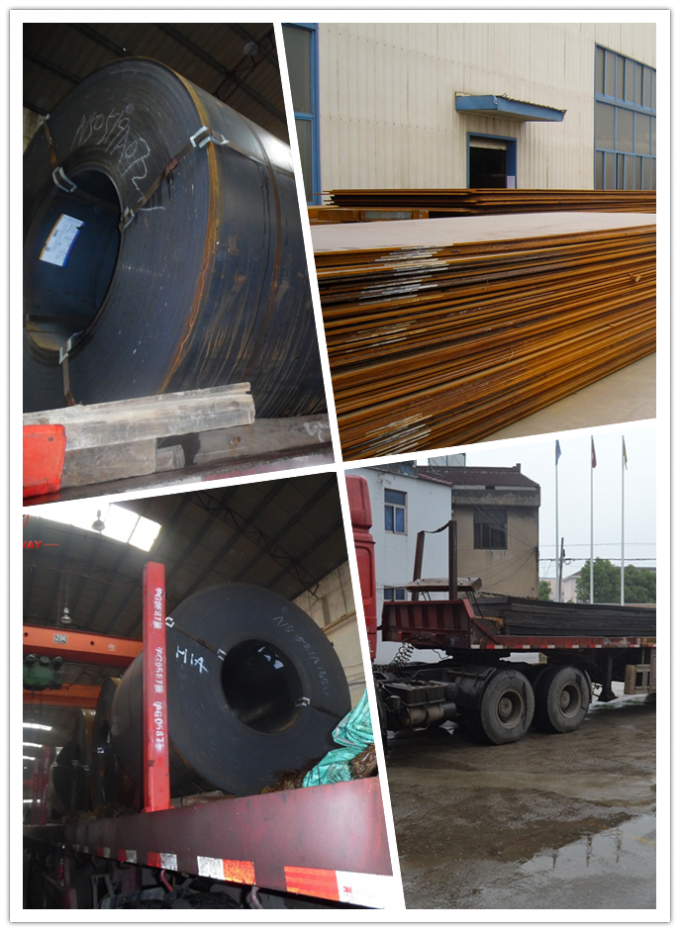

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

SF 8 High Mast Electric Telescoping Pole For Electrical Power Transmission 0

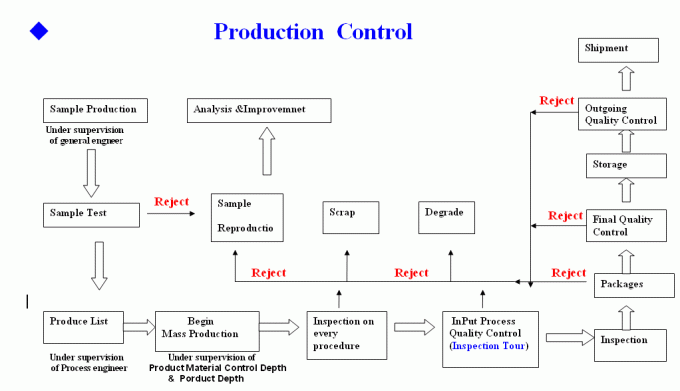

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

SF 8 High Mast Electric Telescoping Pole For Electrical Power Transmission 1

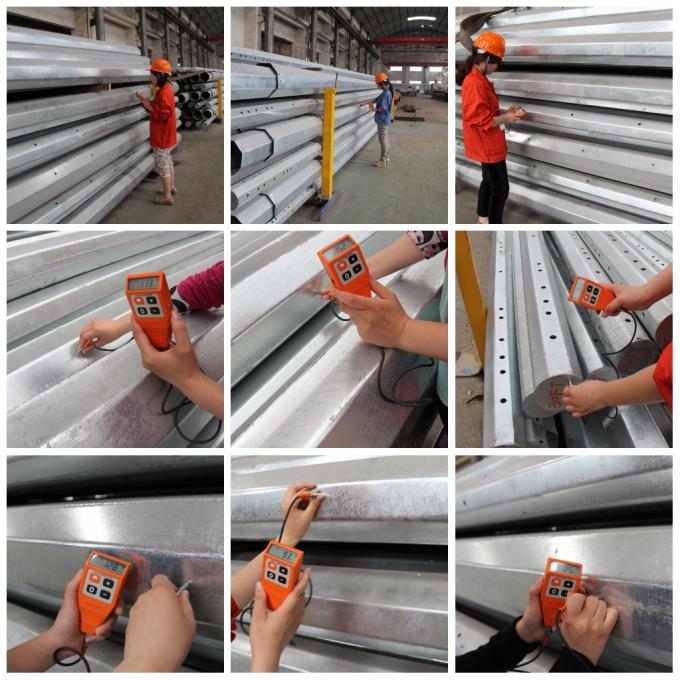

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

SF 8 High Mast Electric Telescoping Pole For Electrical Power Transmission 2

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
