Payment & Shipping Terms:
|Surface Treatment:||Hot Dip Galvanization||Torlance Of Dimension:||+-2%|
|Design Of Pole:||Against Earthquake Of 8 Grade||Wind Speed:||160km/h, 30m/s|
|Suit For:||Electricity Distribution||Length Of Per Section:||Within 14m Once Forming Without Slip Joint|
transmission line poles,
electric power pole

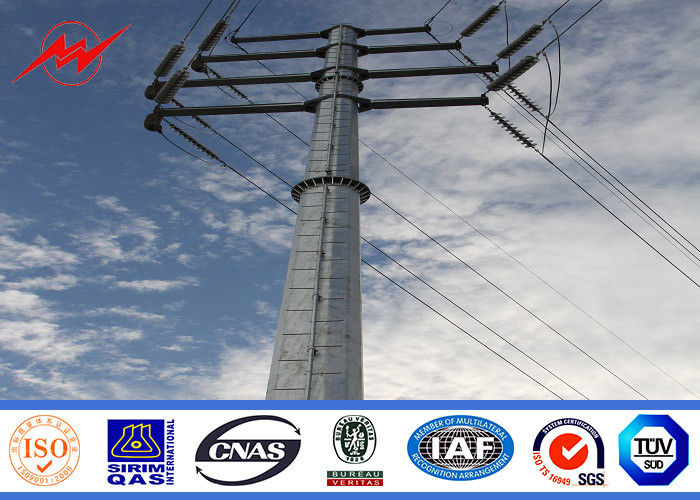

110kv Single-circuit Linear Electrical Power Pole For Transmission Line
|Type||Low ,Middle and higher Voltage|

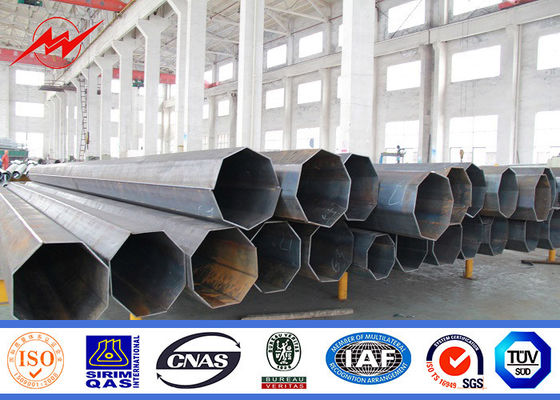

|Shape of pole||Conical, Round, Polygonal (Octagonal, Dodecagonal, etc).|
|Crossarm||Designas per customers’ requirement|
Steel materials conform to ASTM A36, ASTM A572.
|Wall thickness||2.5mm , 2.75mm, 3.0mm, 3.5mm, 3.75mm, 4.0mm, 4.5mm, 4.75mm, 5.0mm,etc|
≤11900mm can be with one section and loaded into 40HQ container.
Welding complies with CSA and AWS D1.1 standard.
|Joint||Joint with Slip Joint or flange mode.|
1. Burial Type.
|Galvanizing||Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.|
|Min Yield Stress||345 Mpa|
|Min Tensile Strength||470 Mpa ~ 630 Mpa|
|Limited Weight||26 Ton/Container|
|Certificates||ISO 9001-2008 , AAA credit rating, etc|
|Protection||Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area|
The main production equipment electricity steel tube pole
12 m * 1200 tons of CNC hydraulic bending machine
Longmen submerged arc welding machines / cantilever submerged arc welding machine
We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.
Detection and lofting apparatus
1000KN mechanical universal testing machine ( tensile strength, yield strength, elongation, bending, shear and etc.)
Five elements of carbon and sulfur analyzer
The welding quality of ultrasonic flaw detector
Hot dip galvanizing thickness measuring instrument
Theodolite ( 5 ) -- installation verticality measuring tower with
Rebound tester ( measurement of concrete strength)
HP wide-format printers (1.2 meters ) - model, map use
Load test stand 20 meters (for portable base station tower, the cable tower and some non-standard products test)
