11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized

China 11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized supplier
11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized supplier 11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized supplier 11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized supplier 11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized supplier

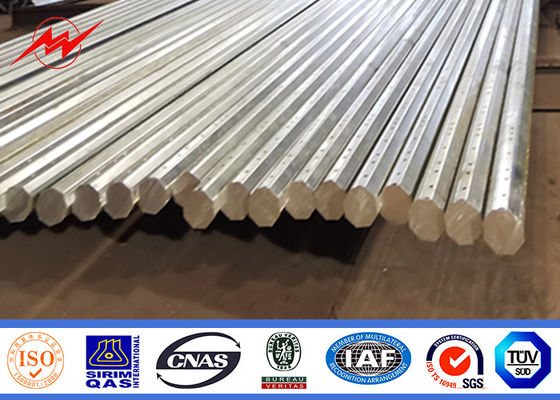

Large Image :  11.8m 5mm Thickness Steel Transmission Poles Hot Dip Galvanized

Product Details:

Place of Origin: Milky Way
Brand Name: milky way
Certification: ISO 9001:2015
Model Number: yin-he

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: USD 400/500 per pieces
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pieces per month
Contact Now
Detailed Product Description
Height: 11.8m Power: 10-550kv
Market: Bangladesh Thickness: 4mm/5mm
Material: GR65 Yeild Strength Not Less Than 460mpa Welding: AWSD1.1,penetration 100%
Galvanization Standard: ASTM A123,average Coating Not Less Than 85um Suit For: Electricity Distribution
High Light:

11.8m steel transmission poles

,

5mm steel transmission poles

,

hot dip galvanized steel pole


              11.8M Hot Dip Galvanized Steel Pole 5mm Wall Thickness Steel Transmission Poles


Features:



Pole’s heightAll available
TypeStraight Pole ,Tensile Pole ,Turn Pole,etc
Shape of poleConical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
CrossarmSingle or double crossarm, dimension as per customers’ requirement
Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

Wall thickness≥2.5mm
Once forming13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

JointJoint with insert mode, flange mode.
Base plate mountedBase plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
GalvanizingHot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage10KV~550KV
CertificatesISO9001-2008 , AAA credit rating, etc
ProtectionAnti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

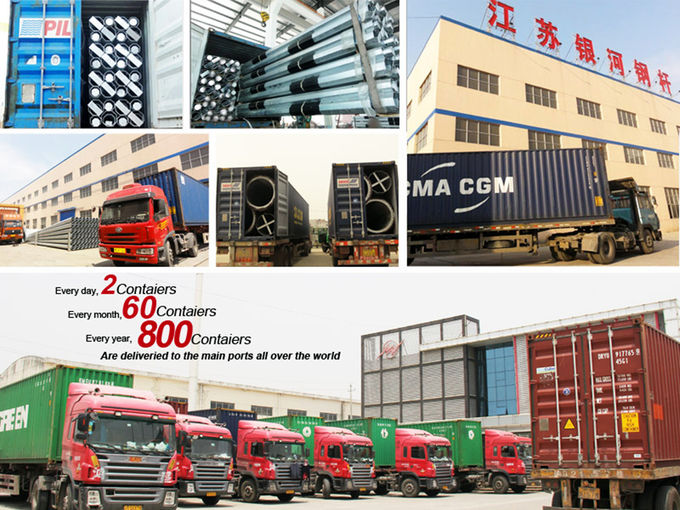

Packing & shipping



We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

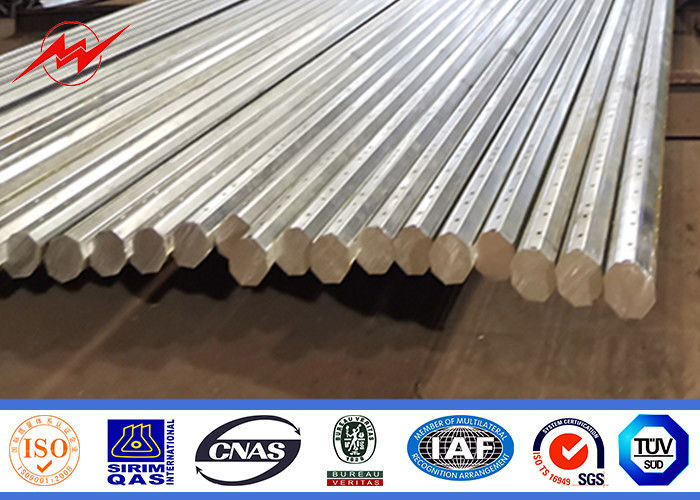

11.8M Gr65 Hot Dip Galvanized Steel Pole 5mm Wall Thickness Steel Transmission Poles 1







Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

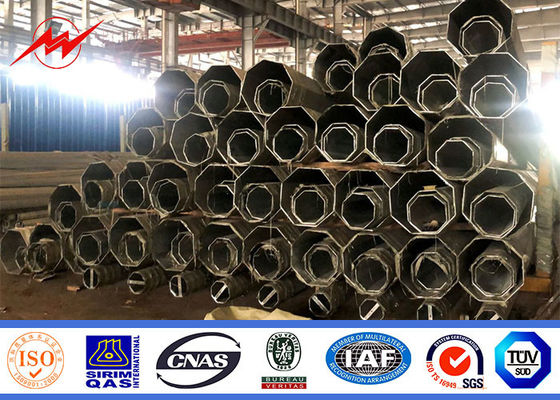

11.8M Gr65 Hot Dip Galvanized Steel Pole 5mm Wall Thickness Steel Transmission Poles 2
