14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line

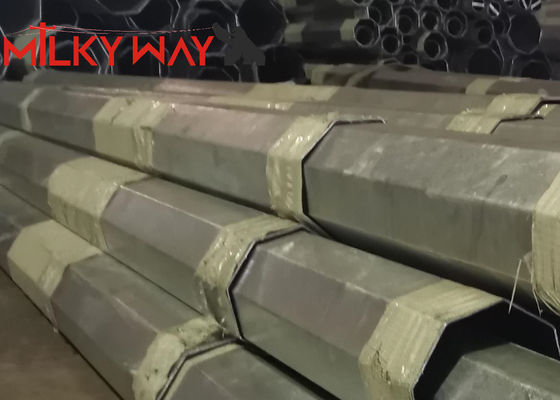

Large Image : 14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	ISO//BV
Model Number:	14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line

Payment & Shipping Terms:

Minimum Order Quantity:	one 40HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Tolerance Of Dimension:	+- 2%	Wind Resistance:	3-500km/h
Material:	GR50 GR65 S500 S355	Height:	14m
Welding:	Welding Confirms With International Welding Standard Of CWB	Powder Coating:	Pure Polyester Powder Painting, Color Is Optional
Design:	Against 8 Grade Of Earthquake	Product Name:	14m Class3 Class4 Galvanised Steel Pole For 33kv Transmission Line

Specifications

1. Protecion class: IP65

2. Light source: 100W-400W high-pressure sodium lamp

3. Rated voltage and frequency: 220V(±10%)/50Hz

4. Caliber: 60mm

5. Protecting class against eletric shock: Type I

6. Lamp in die-cast aluminum, coated with powder polyes ter after anti-corrosive treatment

7. A lamp body with a built-ray lens

8. Fasteners screws, all stainless steel

9. Applicable height: 6m-12m (according to customers' requirment)

10. Working environment:-35°C--+55°C

11. Long term life :more than 100,000 hours

12. Nast of steel, coated with powder polyester after hot galvanizing treatment

13. Lamp can adjust up,down or around and can be changed the projection angle

14. Environmentally friendly:instead of liquid mercury, easy to recycle

15. Applicable places: City Road,overpass,factory areas,bridge,harbour and etc.

Height	9m 11m 12m 14m
Wind Speed	25-55M/S
Structure	Overlap Connection/Flange Connection
Electric Pressure	10KV---550KV
Main Pole Lifetime	More Than 20 Years
Appearance	Hot Dip Galvanization Minimum 120um and Color Paint as Per Request
Delivery Time	30 Days after receiving 30% Deposit
Spare Parts	All necessary parts, e.g. Climbing Steps, Safety Guide Cable, Holding Down Bolt/Nuts, and All Other Bolts and Nuts Required for Erection and Installation.

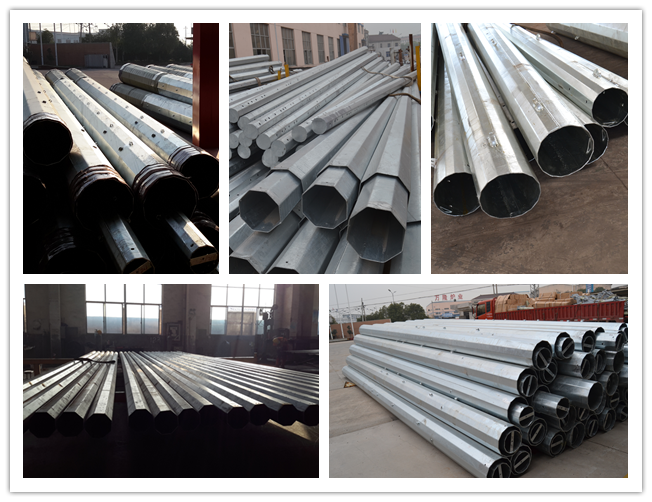

14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line 0

Packaging detail

Packed with good cartons and bubble wrap(the pole can be packed by bubble wrap,the lamp head can be packed by carton.Specific details according to customer's demands)

Delivery detail

15-20 days received the deposit(Specific details according to actual situation)

It can be used on main highway,main street,commercial center,etc. outdoor place.

We can according to your design and drawings to produce. If you only need light pole,we are also provide for you.
The above configuration is for reference only. If you are interested in,please feel free to contact us for more information at anytime.

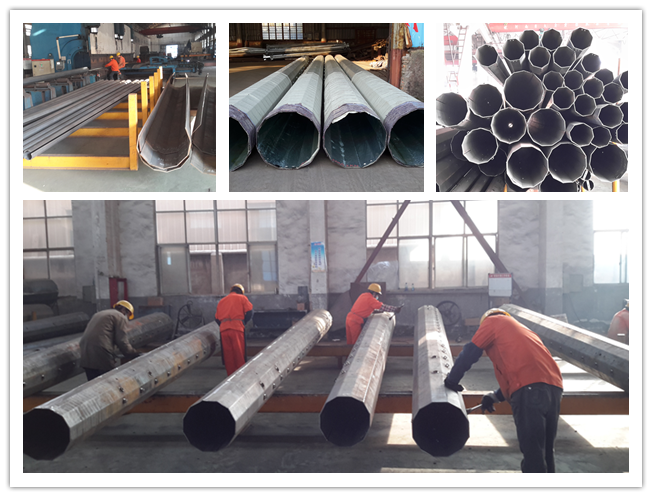

14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line 1

Service

•Our sales team is composed of those who can speak English, French, Spanish, Japanese and Arabic. So we almost realize barrier-free communication with clients.

•We provide technical supports for system design, installation as well as maintenance.

•With professional engineer team, on-site installation training and technical guidance are available.

•Within the warranty period, we will respond in 24 hours if anything goes wrong, and then come up with a solution as soon as possible. We will provide accessories for free if there is any defective product.

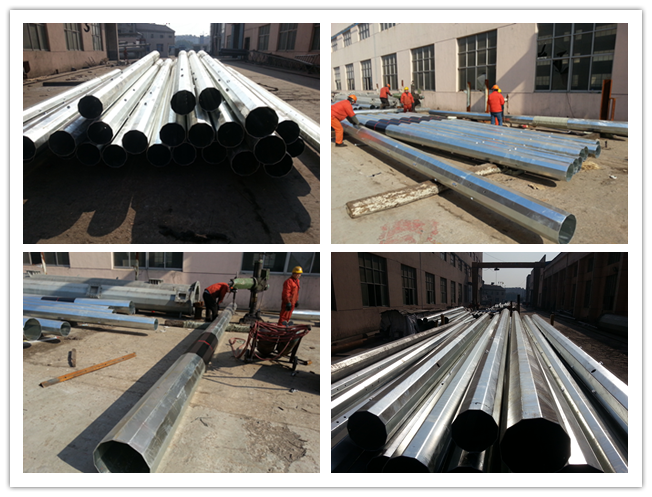

14m class3 class4 Galvanised Steel Pole For 33kv Transmission Line 2
