Hot Rolled Steel Electrical Power Pole with High Tensile Strength and Corrosion Resistance
hot rolled steel power pole
,high tensile strength power pole
,corrosion resistant electrical pole

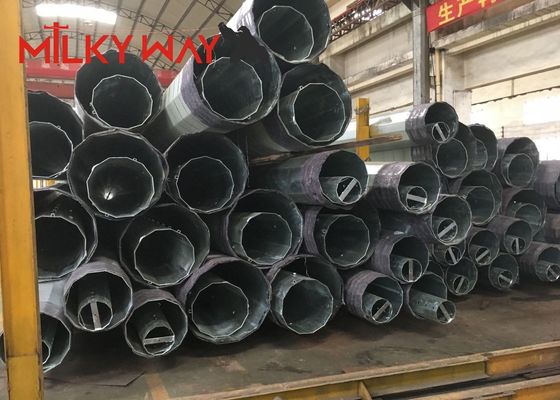

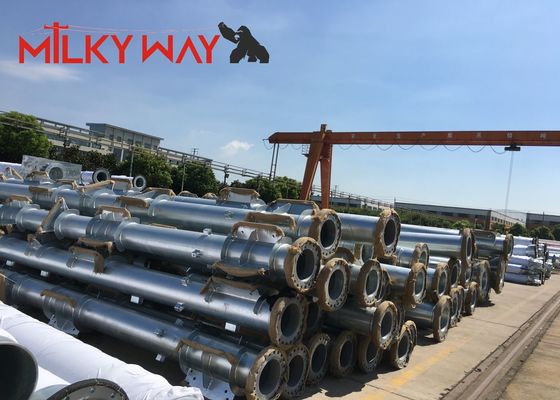

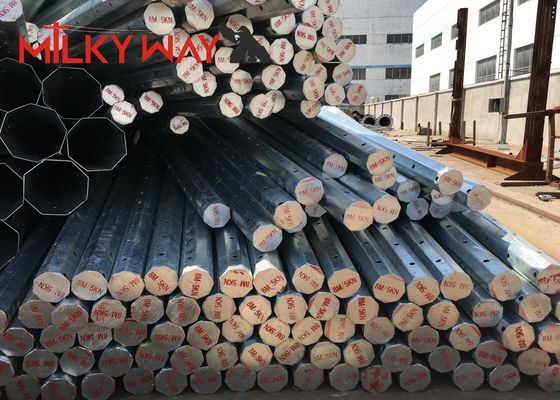

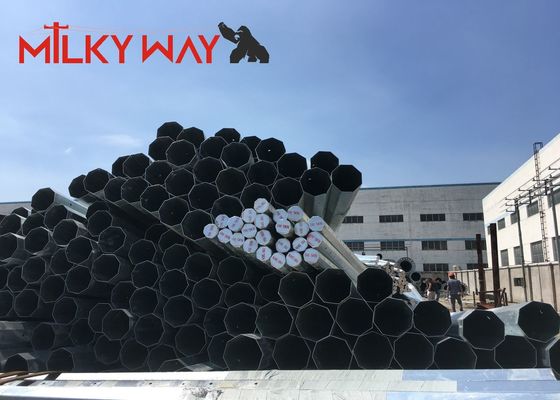

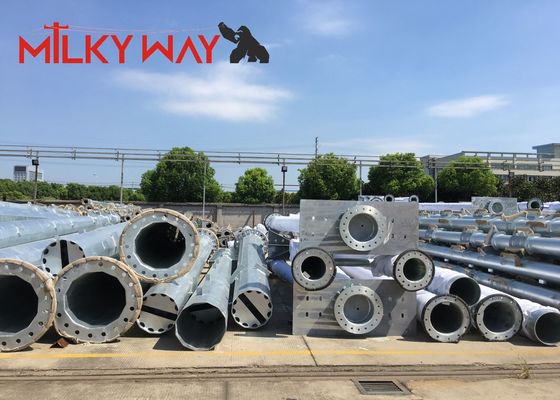

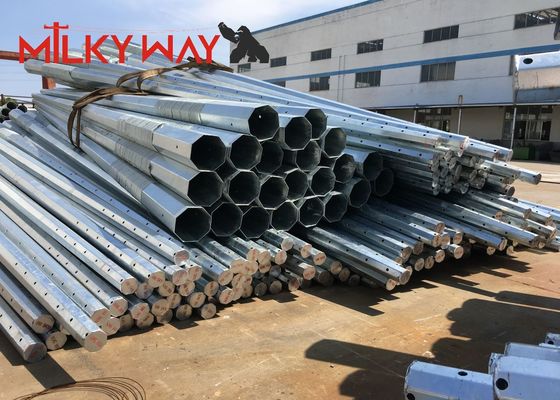

35FT 70FT 90FT Transimission Line Octagonal Galvanized Steel Power Pole
Specification:
|
Material: |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
|
Pole’s height |
3m –15m |
|
length |
Within 16m once forming without slip joint |
|
Wall thickness |
2.3mm-30mm |
|
Pole's Shape: |
Round, Polygonal, Octagonal, Taper round, Round conical, Square |
|
Arm type: |
Single arm, Double arm, Tri-arm, Four-arm |
|
Application: |
Outdoor illumination, Road illumination, Street illumination |
|
welding |
It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
|
Painting color: |
Refer to client’s requirement and then according to (RAL)Color card |
|
Finishing 1: |
Black pole, Rough pole |
|
Finishing 2: |
Hot dip Galvanizing antirust. |
|
Finishing 3: |
HDG. with powder coating |
|
Temperature range |
-35 °C~+45 °C |
|
Max wind velocity |
Aganist wind pressure of 160Km/h |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
|
Quality Control |
We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
|
Certificates |
ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
|
Other |
Less land occupation & easy maintenance. |
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
The information to inquiry or purchase
-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
