3-4mm Gr50 Steel Material galvanized electric power steel pole 2 Sections with Climbing Rung
Specifications:
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal
|
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
|
|
Marks
|
Name plate through rivert or glue ,engrave ,emboss as per customer requirement
|
|
Joint of Poles
|
Insert mode,inner flange mode,face to face joint mode
|
|
Design of pole
|
Against earthquake of 8 grade
|
|
Length of per section
|
Within 14m once forming without slip joint
|
|
Thickness
|
1 mm to 30 mm
|
|
Production Process
|
Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
|
|
Packages
|
Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data
|

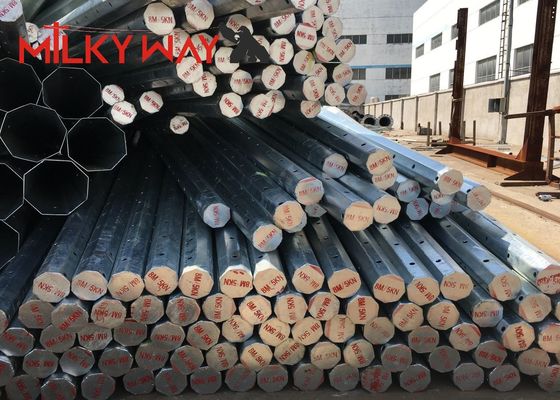

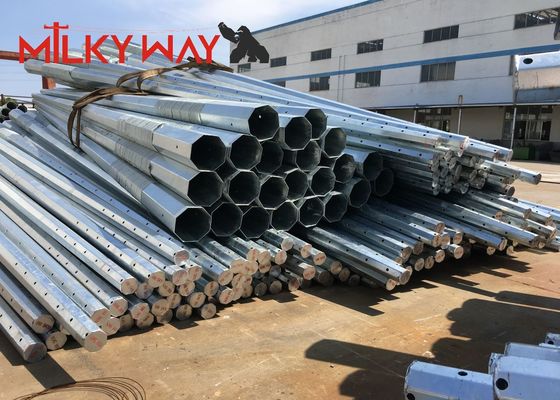

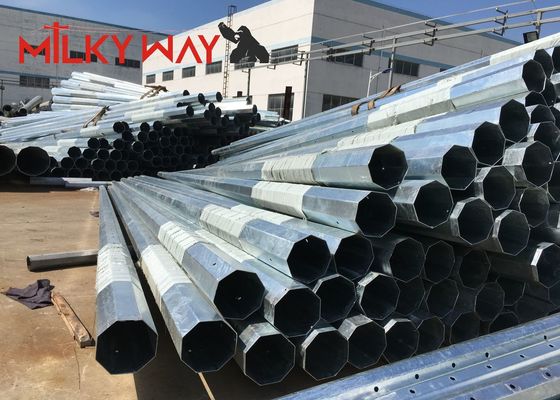

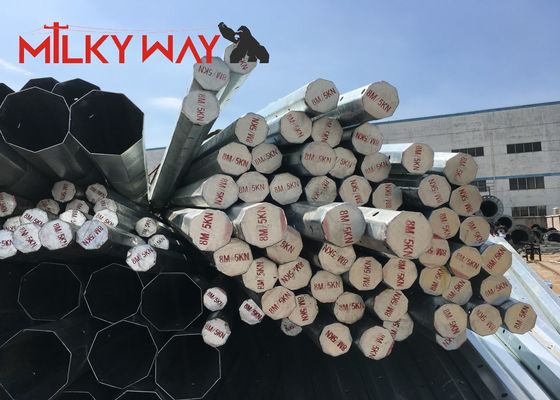

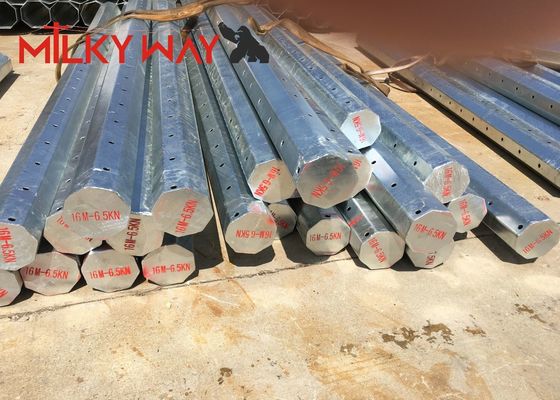

More Photos:
Options:
• The Power Distribution Pole is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The Power Distribution Pole covers Voltage between 10-220KV.
• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.
• Standard Corrosion Protection: hot dip galvanising (above and in-ground)
• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.
• Pre-drilling for removable safety steps is available.
• Cross arms available.
Options & Accessories
Cross arms
OPGW extensions
Load rings
Stand-off insulator brackets
Climbing rungs, stiles and ladders
Rest platforms
Other items fabricated to the pole as required
De-Glare dull galvanised finish
• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)
• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines
• Straightening machines
• CNC Punching machines
• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm
• Capacity to produce poles in heights from 3m to greater than 75m
• Capable of producing poles for any requirement from small distribution poles to large transmission poles
Company History:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
