10.5m 138kv Hot Dip Galvanized Steel Power Pole for Transmission Line with Wind Speed 160 Km/Hour and Earthquake Resistant Design

1 pcs
MOQ
Negotiation
Price
10.5m 138kv Hot Dip Galvanized Steel Power Pole for Transmission Line with Wind Speed 160 Km/Hour and Earthquake Resistant Design
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Galvanized Steel Pole
Application: Tranmission Line
Design: Customized
Surface Treatment: Hot Dip Galvanization
Welding Standard: AWS D1.1
Galvanization Thickness: Average 86um
Material: Q345
Highlight:

Wind Speed 160 Km/Hour Steel Power Pole

,

ISO 9001 Certified Transmission Line Pole

,

Earthquake Resistant Electric Power Pole
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T,L/C at sight
Supply Ability: 300pcs per day
Product Description
10.5m 138kv Electrical Supplies Transmission Line Steel Round Power Pole for Power Distribution Network
High-quality steel power pole designed for 138kv transmission lines in power distribution networks, offering superior strength and durability.
Product Specifications
Specification Details
Suit for 10.5m 138kv Electrical Supplies Transmission Line Steel Round Power Pole
Shape Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material Q345B/A572 (minimum yield strength≥345n/mm²), Q235B/A36 (minimum yield strength≥235n/mm²), Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490 to ST52-
Tolerance of dimension ±2%
Power 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000Kg applied to 50cm from the top pole
Marks Name plate through rivet or glue, engrave, emboss as per customer requirement
Surface treatment Hot dip galvanized following ASTM A123, color polyester powder or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour (30 m/s)
Minimum yield strength 355 MPa
Minimum ultimate tensile strength 490 MPa
Max ultimate tensile strength 620 MPa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding Passed flaw testing, internal and external double welding, AWS (American Welding Society) D1.1 standard
Thickness 1mm to 30mm
Production Process Raw material test → Cutting → Molding/bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Calibration → Deburr → Galvanization/powder coating/painting → Recalibration → Thread → Packages
Packages Normally covered by mat or straw bale at top and bottom, can follow client requirements. Loading capacity per 40HC/OT calculated based on client specifications
10 Advantages of Steel Utility Poles
  • Easy to Handle
  • Light Weight
  • Long Life
  • Cost Effective
  • Low Maintenance
  • Sustainable
  • Durable
  • Safe
  • Aesthetics
  • Engineered for Strength

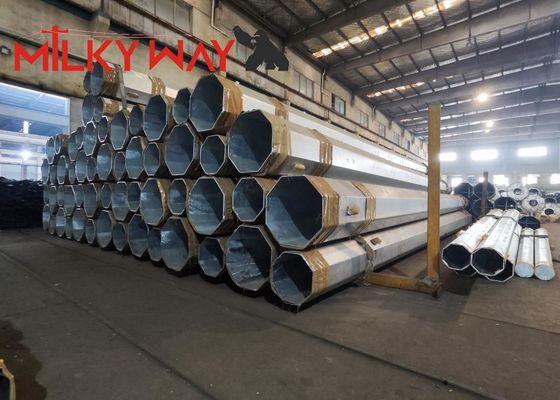

10.5m 138kv Hot Dip Galvanized Steel Power Pole for Transmission Line with Wind Speed 160 Km/Hour and Earthquake Resistant Design 0
Production Process
Raw material test → Cutting → Bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Sample assemble → Surface clean → Galvanization or powder coating/painting → Recalibration → Packages

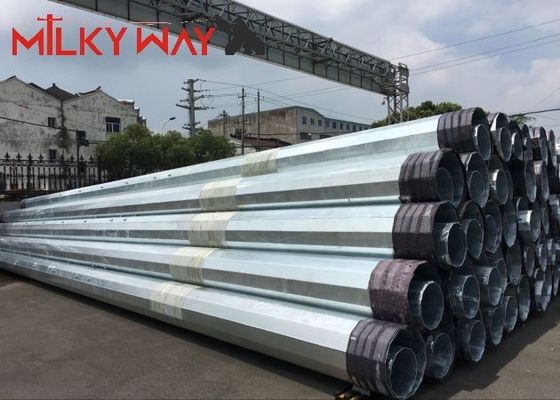

10.5m 138kv Hot Dip Galvanized Steel Power Pole for Transmission Line with Wind Speed 160 Km/Hour and Earthquake Resistant Design 1
Company Background
JiangSu Milky Way Steel Poles Co., Ltd. was established in 1988, located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters with annual output value reaching 200 million. With 20 years experience in design and production, our main products include power poles, communication towers, street lighting poles, and steel brackets. The company features strong technical force, advanced production equipment, and perfect quality management system, with product quality reaching international advanced level.

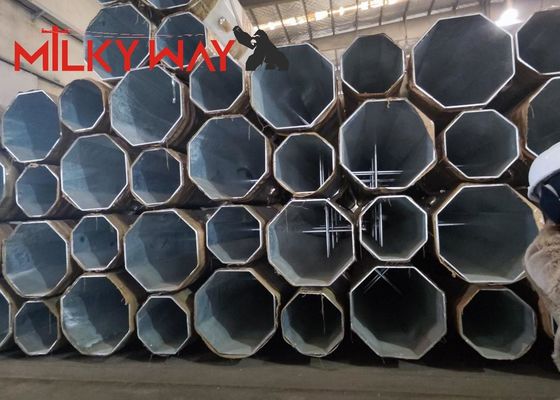

10.5m 138kv Hot Dip Galvanized Steel Power Pole for Transmission Line with Wind Speed 160 Km/Hour and Earthquake Resistant Design 2
