Product Details:
Payment & Shipping Terms:
|
Product Name: | Steel Utility Pole | Application: | Electrical Power Distribution |
---|---|---|---|
Galvanization Thickness: | Average 86μm | Warranty: | 15 Years |
Gavanization Standard: | ASTM A 123 | Dimenstion Torlance: | +- 2% |
Power: | 10 KV ~550 KV | ||
Highlight: | metal utility poles,electrical utility poles |

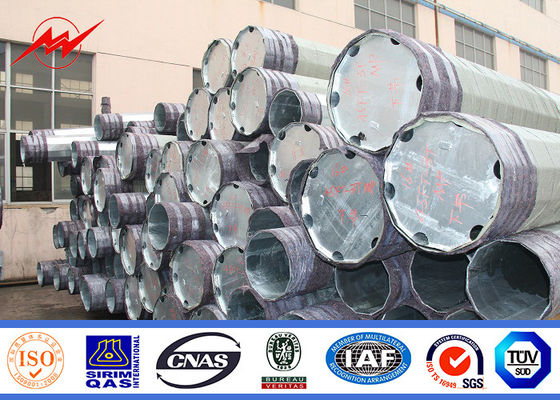

6 Sides HDG Steel Utility Pole for Electrical Power Distribution
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Specifications:
Torlance of the dimenstion | +- 2% |
Power | 10 KV ~550 KV |
Safety Factor |
Safety factor for conducting wine : 8 |
Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour . 30 m /s |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Length of per section | Within 14m once forming without slip joint |
Welding |
We has past flaw testing.Internal and external double welding makes |
Thickness | 1 mm to 30 mm |
Production Process |
Rew material test → Cuttingj →Molding or bending → |
Packages |

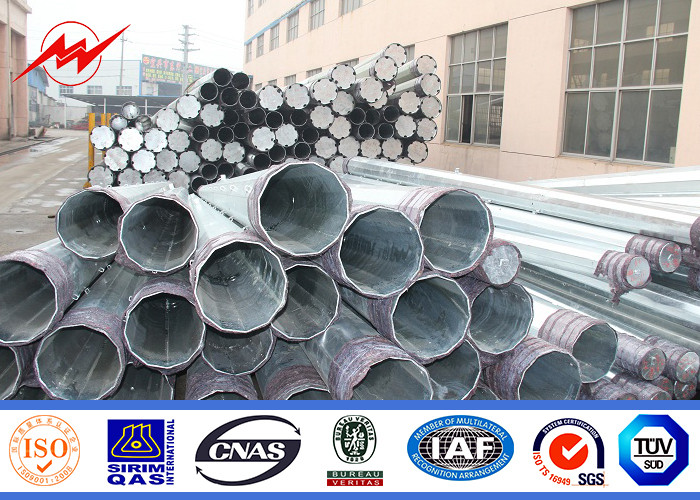

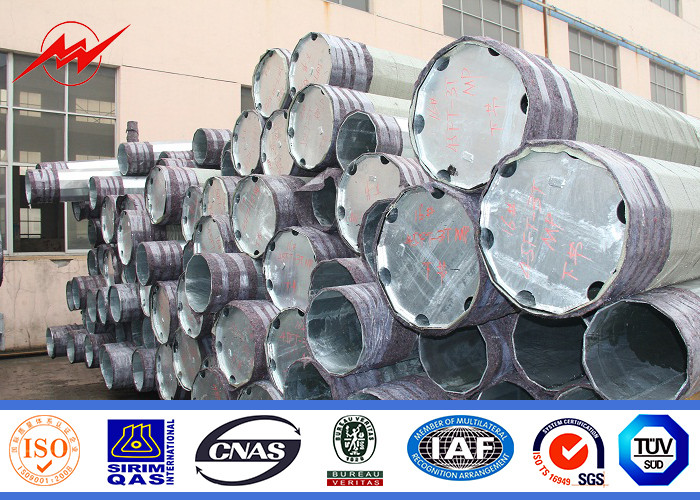

Our poles as normal cover by Mat or straw bale at the top and bottom , |

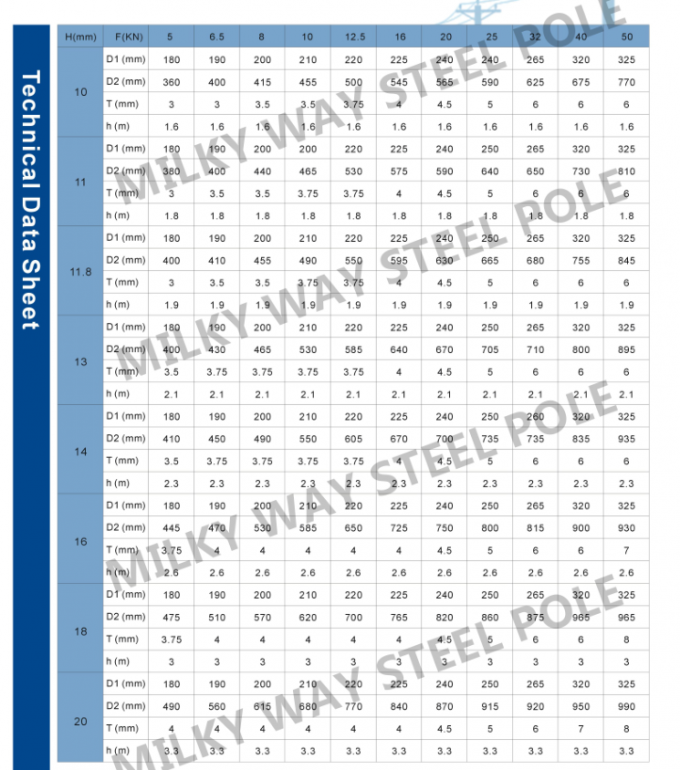

The above design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls contact us.
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
