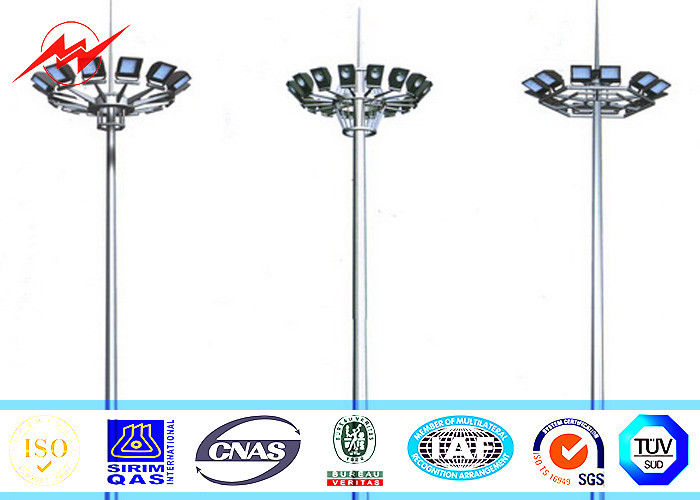

High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium

China High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium supplier
High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium supplier High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium supplier High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium supplier

Large Image :  High Mast Light Steel Tubular Pole Single Double Triple Arm For Stadium

Product Details:

Place of Origin: China,Jiangsu
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Tolerance: +/-2% Product Name: Gr65 Steel Poles Steel Tubular Pole High Mast Pole For Stadium
Pole Finished: Galvanized High Mast Pole Payment Terms:: T/T
Supply Ability:: 2000pcs Per Week Safty Facor: 1.8
High Light:

high mast lighting pole

,

Sports Light Poles

Gr65 Steel Tubular Pole High Mast Light Pole Single Double ,Triple Arm For Stadium





Specifications

1)Steel materials:Gr65 or ss400

2)8-15 meters pole,vary from person to person
3)Lithium arc welding,tighten
4)Hot-dip galvaniation and powder coating,anti-corrosion,aging

resistant
5)Pole shape:square and round conical,tubular stepped
6)Base plate mounted:base plate is square or round in shape with slotted holes for anchor bolt
7)Single,double or triple arm
8)Fair price and easy maintance
9Strict control and test measures ensure the high quality

These above instructions are for reference only.
Color, size, specifications and packaging mainly depend on customers' demand





street lighting high mast polesstreet lighting high mast polesstreet lighting high mast polesstreet lighting high mast polesstreet lighting high mast polesstreet lighting high mast poles



Specification:

20-50 meters high mast pole

Type

high mast pole

Shape

conical, hexagonal and octagonal

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

high mast pole suit for

city square,wharf,stadium

Option of high mast pole

Height from 20m to 35m
Flange mounted or planted type

Production Process of high mast pole

Raw material test  Cutting Molding or bending Welidng (longitudinal )Dimension verify Flange welding Hole drilling Calibration DeburrGalvanization or powder coating ,painting RecalibrationThread Packages
