Product Details:
Payment & Shipping Terms:
|
| Power: | 10kv~550kv | Wind Speed: | 160km/h, 30m/s |
|---|---|---|---|
| Thickness: | 1mm To 30mm | Welding Standard: | AWS D1.1 |
| Tolerance: | +/-2% | Design Load In Kg: | 300~ 1000 Kg Applicated To 50cm From The To Pole |
| Highlight: | galvanised steel poles,power line pole |
||

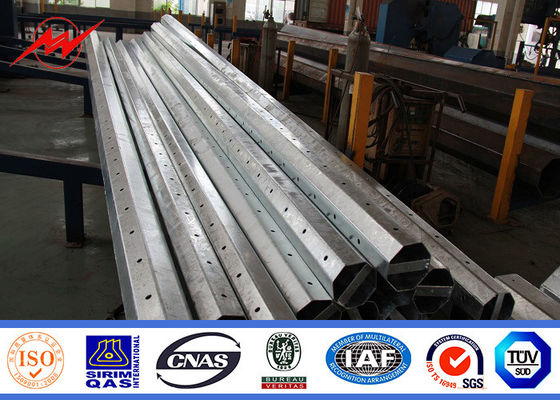

Hot Dip Galvanized Steel Pole For 11kv Electrical Overhead Line Project
Specification:
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance
11) Packages: Normally covered by sack or as customer’s requirement.
12) Voltage:10-550KV
|
Material: |
high quality Q235 hot rolled steel |
|
Mounting Height: |
3-30m or according to the requirements of customers |
|
Shape of pole: |
Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|
|
Brackets: |
Single or double brackets are in the shape and dimension as per customers requirement |
|
Base plate: |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
|
|
Groung mounted: |
The length buried underground as per customers requirement
|
|
Galvanizing:
|
Hot dip galvanization with thickness of 80-100µm average
|
|
Powder coating: |
Pure polyester powder painting, color is optional |
Features & Advantage
1 High intensity, high resistance of shock or vibration
2 High efficiency up to 85%, 110lm/watt
3 Low illumination attenuation, 3% - 5% degradation/1kh
4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.
5 Excellent heat dispersion, and low power consumption.
6 Easy installation, free maintanence.
7 High Power Factor: 0.85
8 No UV radiation
9 No mercury or other inorganics
10 Constant current to guarantee long life
Packing and Shipping
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
