Product Details:
Payment & Shipping Terms:
|
Product Name: | Street Light Poles | Welding Standard: | AWS D 1.1 |
---|---|---|---|
Material: | Q235 | Warranty Time: | 15 Years |
Dimenstion Torlance: | +- 2% | Finish: | HDG Powder Coating |
Highlight: | street lighting poles,galvanized street light pole |

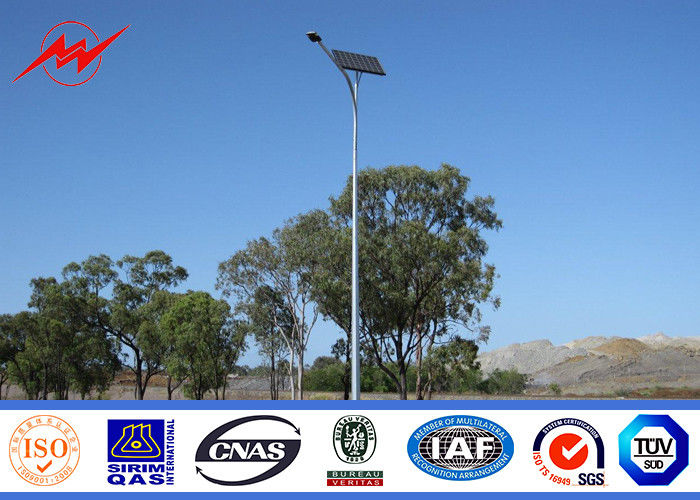

Outdoor HDG12m Street Light Poles Powder Coating with 2 Cross Arms
Specifications:
Application site |
Street, highway intersections |
Column height |
6.5metre |
Length and quantity of arm |
9metre, 1pieces |
The top and bottom diameter of column |
200-300mm |
The top and bottom diameter of arm |
90-200mm |
Wall thickness of column and material |
6.5mm,Q235A |
Wall thickness of arm and material |
6mm,Q235A |
Bottom flange size of column |
500*20 |
Connecting flange size between column and horizontal arm |
350*18 |
Wind load resistance |
30m/S |
Anticorrosion treatment |
Hot dip galvanized steel to antirust or with Powder coating to beautify pole. |
Shape |
Octagonal, Polygonal or Tapered round |
The installation accessories |
LED lights, cameras and traffic indication signs |
Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Company Instruction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
