Product Details:
Payment & Shipping Terms:
|
| Grade: | Class Three | Application: | 128kv Electric Distribution Power |
|---|---|---|---|
| Pole Connection: | Welding Or Joint | Welding Standard: | AWS D 1.1 |
| Surface Treatment: | Galvanization | Dimenstion Torlance: | +- 2% |
| High Light: | metal utility poles,electrical utility poles |
||

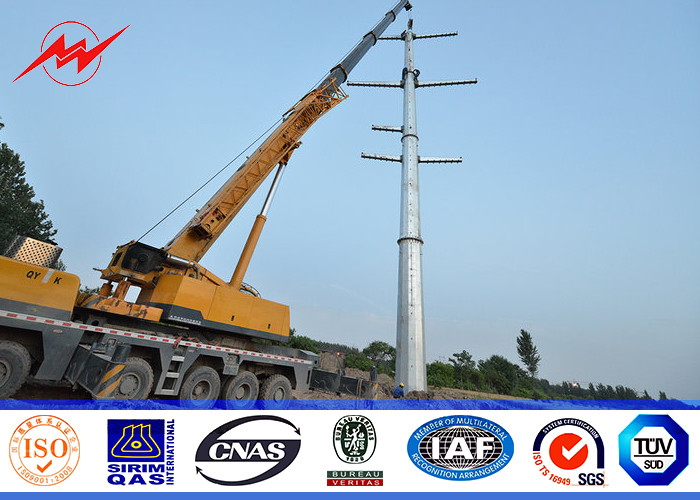

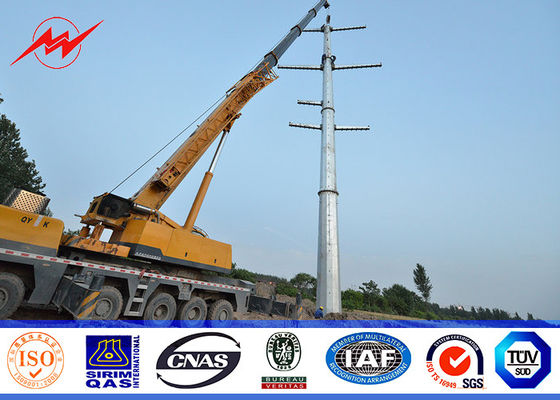

Grade Three standard 65ft 1000kg load Steel Utility Pole for 128kv electric distribution power
Specifications:
| Joint of Poles | Insert mode,innerflange mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 32m/s or 35m/s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Material | Q345,Gr65,Gr50 |
| Length of per section | Within 14m once forming without slip joint |
Pole Type
Two different types:
Flange type
Welding type
Key Benefits
Fabricated with uniform dimensions
Easy to install
Durable
Easy to maintain
Lower in life cycle costs
A solution to EPA regulations and deforestation issues
Superior in strength
Impervious to insects and rot
Free of toxic chemical treatments or hazardous waste concerns
100% recyclable
Design:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating
Standard Features
In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish

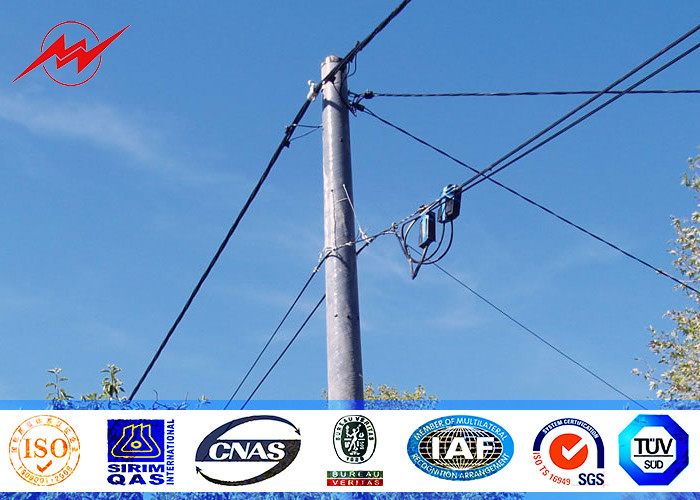

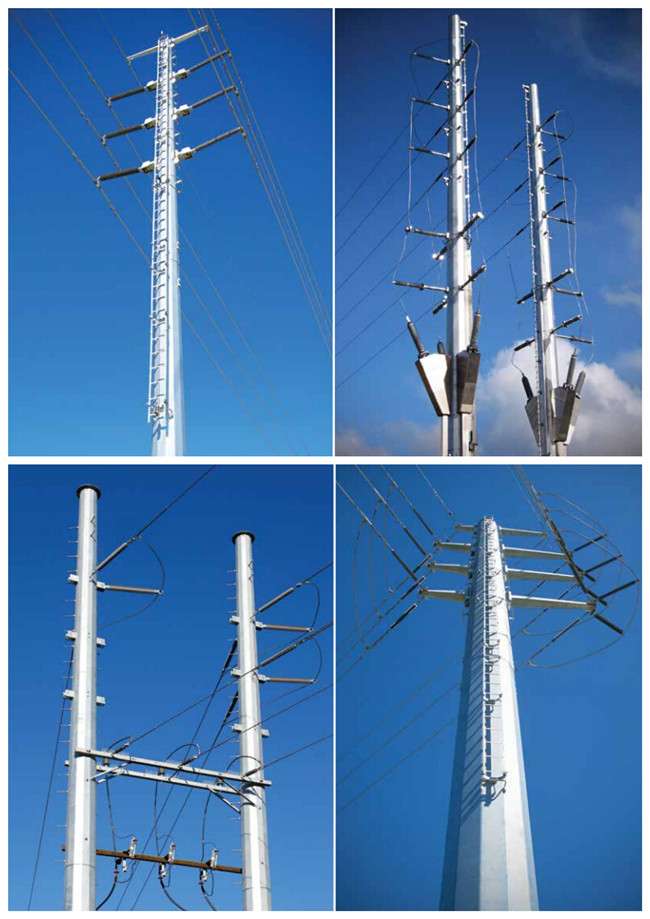

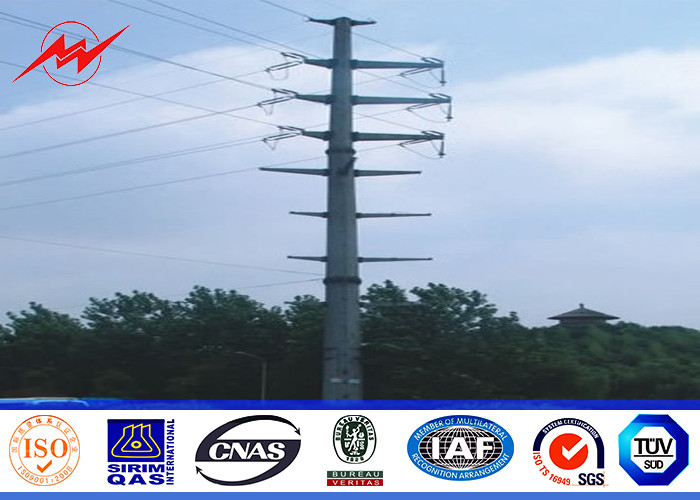

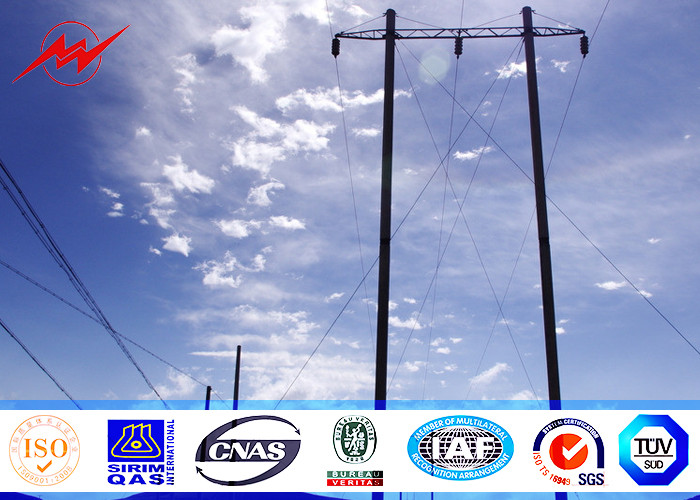

More Pictures
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
