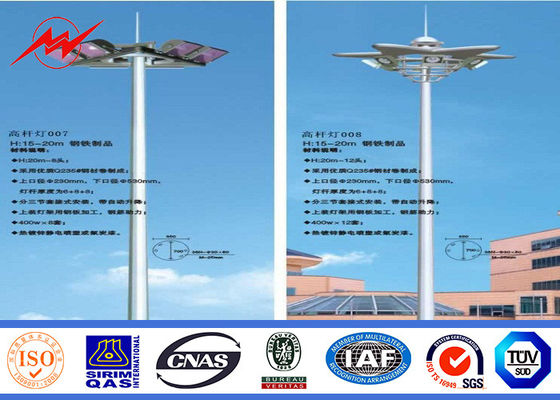

Q345 steel poles steel tubular pole High Mast Pole for stadium

Large Image : Q345 steel poles steel tubular pole High Mast Pole for stadium

Product Details:

Place of Origin:	China,Jiangsu
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Tolerance:	+/-2%	Product Name:	Q345 Steel Poles Steel Tubular Pole High Mast Pole For Stadium
Pole Finished:	Galvanized High Mast Pole	Payment Terms::	T/T
Supply Ability::	2000pcs Per Week	Safty Facor:	1.8
Highlight:	high mast lighting pole , Park Light pole

Q345 steel poles steel tubular pole High Mast Pole for stadium

High mast pole Q235 steel materialsmooth welding noedgeHDG ,powder coated

1)Steel materials:Q235 or ss400

2)8-15 meters pole,vary from person to person
3)Lithium arc welding,tighten
4)Hot-dip galvaniation and powder coating,anti-corrosion,aging

resistant
5)Pole shape:square and round conical,tubular stepped
6)Base plate mounted:base plate is square or round in shape with slotted holes for anchor bolt
7)Single,double or triple arm
8)Fair price and easy maintance
9Strict control and test measures ensure the high quality

These above instructions are for reference only.
Color, size, specifications and packaging mainly depend on customers' demand

Specification:	20-50 meters high mast pole
Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages
