Product Details:
Payment & Shipping Terms:
|
| Height: | 6m | Painting Color: | Black Color Or Customer Design |
|---|---|---|---|
| Light Type: | LED | Light Shape: | Square Type |
| Surface Treatment: | Galvanization And Powder Coating | Pole Shape: | Round,octagonal |
| Average Gavanzation Thickness: | According To The Pole Thickness | ||
| High Light: | street lighting poles,galvanized street light pole |
||

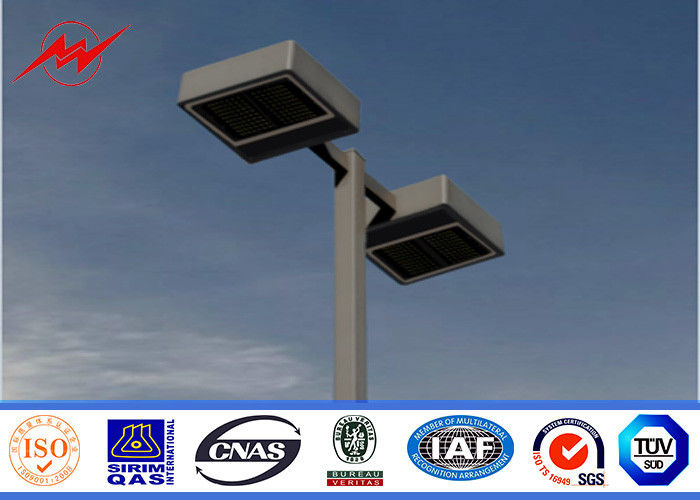

Square 6m Round tapered Parking Lot Light Pole with galvanization for parking area lighting
Quick Information
1) Higher quality and lower cost to win the competitive price
2) 3 production lines to ensure fast delivery
3) Skilled manufacture, quality control and technical team
4) Warranty of quality: more than 20 years
5) OEM, ODM service
Quick Details for Parking Lot Light Pole
|
Yield strength of Material |
Minimum yield strength >= 235 n/mm2 for Q235, S235 and SS400 |
|---|---|
|
Pole’s height |
3m –15m |
|
Length of one part |
Within 16m once forming without slip joint |
|
Arm diameter |
Diameter as 42mm, 48mm, 60mm, 76mm etc., fit any diameter lamp. |
|
Power |
250W to 400W |
|
Welding |
Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, and internal and external double welding makes the welding beautiful in shape. It consists with the international welding standard of CWB and AWS D 1.1. |
|
Galvanization |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985. |
|
Wall thickness tolerance |
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
|
Surface treatment 1 |
Black pole, Rough pole |
|
Surface treatment 2 |
Hot dip galvanizing antirust |
|
Surface treatment 3 |
Hot dip galvanizing with powder coating |
|
Temperature range |
-35 °C ~ +45 °C |
|
Wind speed |
Aganist wind pressure of 120Km/h to 180Km/h, according to client’s design. |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement |
|
Quality control |
According to ISO9001-2008 requirements |
Applications
The Avenue range of tapered round and tapered octagonal poles are the standard variety of poles for Street Lighting with both single and double outreaches. The Avenue range is ideally suited for residential subdivisions, commercial developments, recreational pathways and parks.
Prodcut Process
MATERIAL
Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.
Main Material is Q235,Q345,Gr65 or as specified in the customer specification.
FINISHING
Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.
No welding, cutting or drilling is done after galvanizing.
The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.
SHAPE
1. Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.
2. Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.
3. Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.
4. Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.
5. Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft as shown on our drawings.
6. Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.
7: Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.
8. Lamp:LED light is available or specified in the customer requirement.
