Steel Telecom Cellular Antenna Mono Pole Tower For Communication , ISO 9001

Large Image : Steel Telecom Cellular Antenna Mono Pole Tower For Communication , ISO 9001

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Milky Way
Certification:	ISO9001/BV/
Model Number:	Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T or L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Galvanization Standard:	ASTM A 123	Product Name:	Steel High Quality Telecom Cellular Antenna Towers Mono Pole Tower For Communication
Application:	Communication Distribution	Design:	Customized
Surface Treatment:	Hot Dip Galvanization	Dimension Torlance:	+- 2%
Welding Standard:	AWS D 1.1	Standard:	ISO
High Light:	monopole transmission tower , monopole cell tower

Steel High Quality Telecom Cellular Antenna towers Mono Pole Tower For Communication

Specifications:

Suit for	Communication distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490, to ST52-
Torlance of the dimension	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg applied to 50cm from the to pole
Marks	Name plate through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Row material test → Cutting →Molding or bending → Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

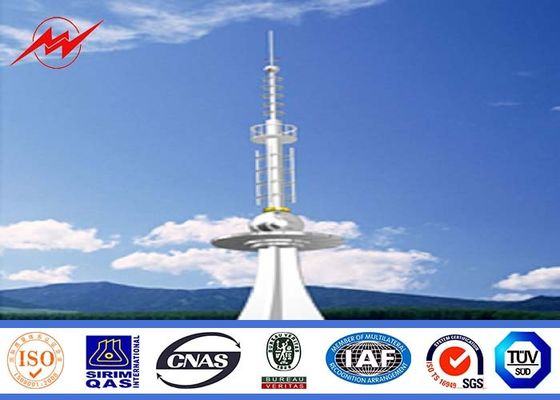

Steel Telecom Cellular Antenna Mono Pole Tower For Communication , ISO 9001 0

Description:

The communication tower is used for the communication distribution.

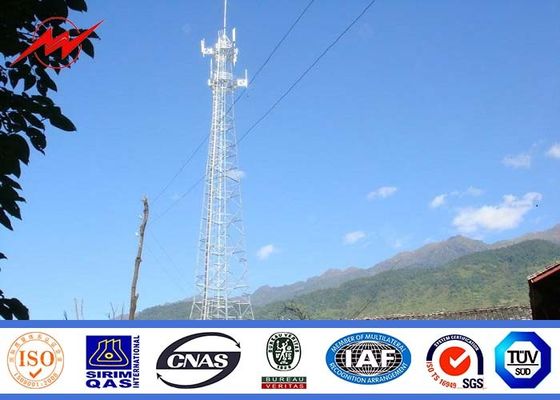

Steel Telecom Cellular Antenna Mono Pole Tower For Communication , ISO 9001 1

The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.

Production Flow:

The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Company Introduction:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
