Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line

one 40HQ
MOQ
negotiation
Price
Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 15M 50KN Octagonal Transmission Steel Power Pole
Material: ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa
Type: 15M 50KN Octagonal Transmission Steel Power Pole
Shape: Octagonal
Height: 15M
Galvanization Standard: Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm
Thickness: 3mm
Welding Standard: AWS D1.1 With Penatration Rate No Less Than 80%-100%
Warranty Period: 50 Years
Joint Of Poles: Overlap / Flange/ Direct Burial
Highlight:

octagonal galvanized steel pole

,

steel octagonal galvanized pole

,

octagonal steel galvanized light pole

Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO9001/BV/
Model Number: 15M 50KN Octagonal Transmission Steel Power Pole
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: L/C, T/T
Supply Ability: 300 pieces pole per day
Product Description



15M 50KN Octagonal Transmission Steel Power Pole For Distribution Line For The Philippines



Specification 15M 50KN Octagonal Transmission Steel Power Pole
Type 15M 50KN Octagonal Transmission Steel Power Pole
Shape Octagonal
Material ASTM 572 grade 50 with yield strength not less than 345mpa
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment

Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm

Standard Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 15m once forming without slip joint.
Option of steel power pole Height from 8m to 35m
Flange mounted or planted type
Production Process of high mast pole

Raw material test → Cutting →Molding or bending

→Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder

coating ,painting →Recalibration→Thread →Packages




The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb  etc.





Products Picture

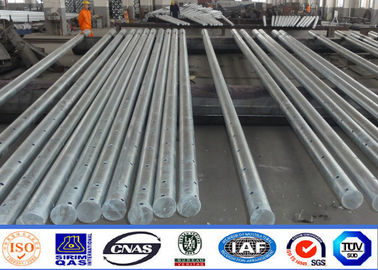

Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 0





Material

ASTM 572 grade 50 with yield strength not less than 345mpa

Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 1    Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 2

Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 3







3.Glavanization

---Average thickness of the galvanization : not less than 86 μm



Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 4 Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 5





4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 6 Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 7





5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder



6. The information to inquiry or purchase

---Steel pole height and force

---Cross arm type and length, the position to install in the steel pole

---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in

the steel pole to install the cross arm)

---Safety factor of the steel pole.

---wind speed

---Type of climbing rung

---Destination port





Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line 8
