Name: 12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 12M 33KV Electrical Power Steel Pole
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 12M 33KV Electrical Power Steel Pole

Type: 12M 33KV Electrical Power Steel Pole

Material: ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa

Shape: Octagonal

Height: 8-45m

Galvanization Standard: Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm

Thickness: 3mm

Welding Standard: AWS D1.1 With Penatration Rate No Less Than 80%-100%

Joint Of Poles: 50 Years

Warranty Period: Overlap / Flange/ Direct Burial

Highlight:

electric utility poles

steel utility poles

Basic Infomation

Place of Origin: China

Brand Name: Milky Way

Certification: ISO 9001

Model Number: 12M 33KV Electrical Power Steel Pole

Payment & Shipping Terms

Packaging Details: as per customer request

Delivery Time: usually 2 weeks after confirming

Payment Terms: L/C, T/T

Supply Ability: 300 pieces pole per day

Gallery

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission

Product Description

12M 33KV Electrical Power Steel Pole with Hot Dip Galvanized For Power Transmission

Specification	12M 33KV Electrical Power Steel Pole
Type	12M 33KV Electrical Power Steel Pole
Shape	Octagonal
Material	ASTM 572 grade 50 with yield strength not less than 345mpa
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 15m once forming without slip joint.
Option of steel power pole	Height from 8m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.

Products Picture

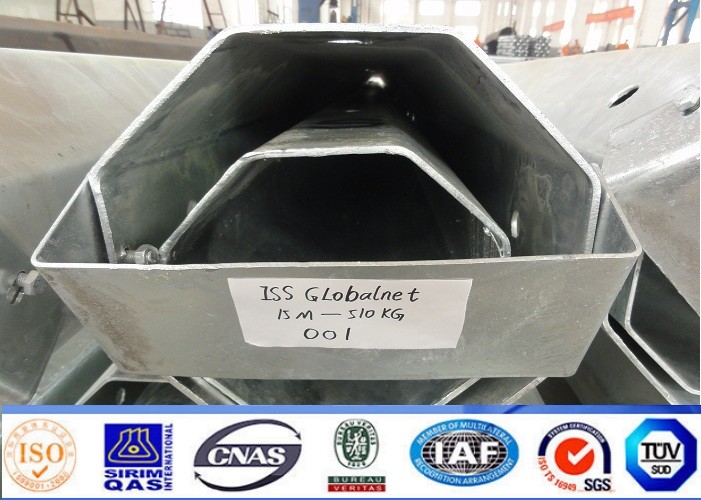

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 0

Material

ASTM 572 grade 50 with yield strength not less than 345mpa

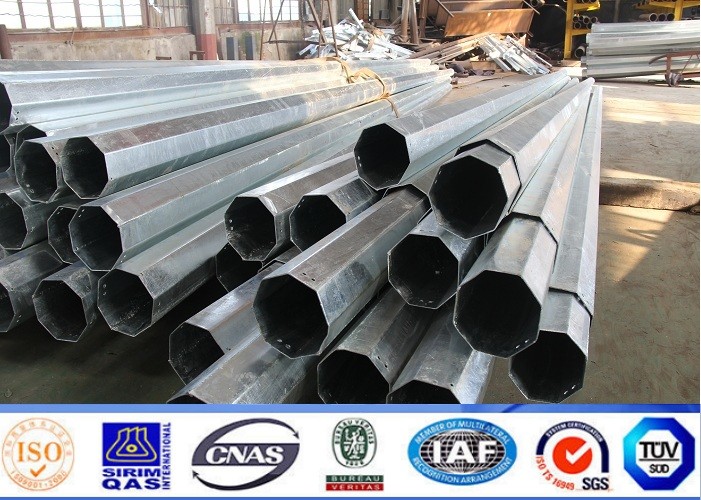

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 1

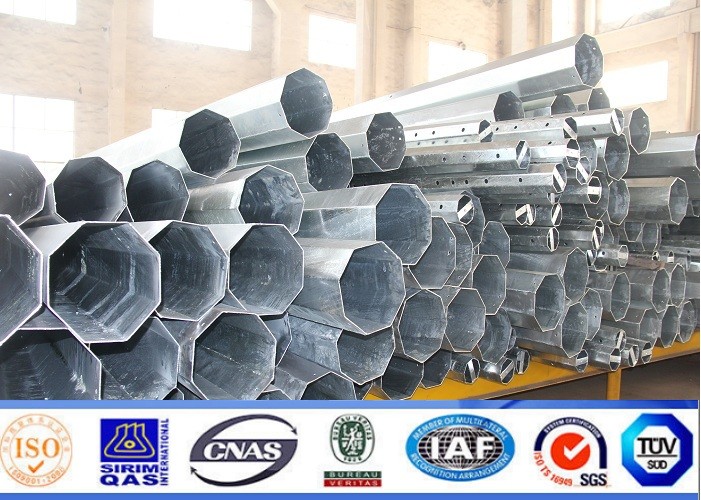

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 3

3.Glavanization

---Average thickness of the galvanization : not less than 86 μm

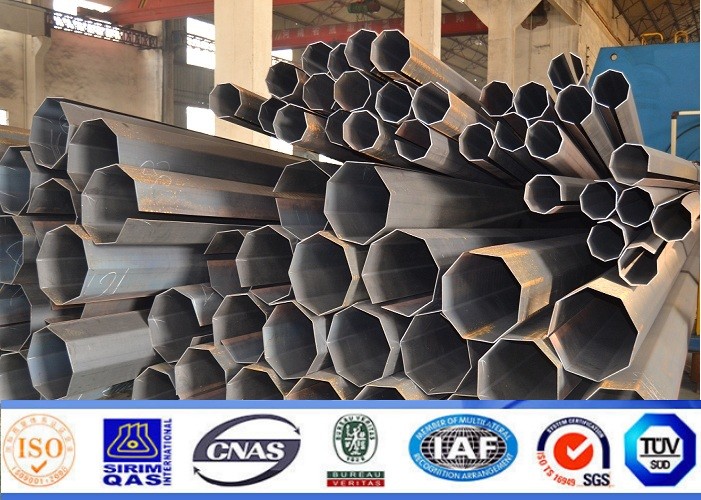

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 4

4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 6

5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

6. The information to inquiry or purchase

---Steel pole height and force

---Cross arm type and length, the position to install in the steel pole

---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in

the steel pole to install the cross arm)

---Safety factor of the steel pole.

---wind speed

---Type of climbing rung

---Destination port

12M 33KV Electric Service Pole With Hot Dip Galvanized For Power Transmission 8
