15meter 6000kg Steel Tubular Electric Pole Ip65

10. Working environment:-35°C--+55°C

11. Long term life :more than 100,000 hours

13. Lamp can adjust up,down or around and can be changed the projection angle

14. Environmentally friendly:instead of liquid mercury, easy to recycle

15. Applicable places: City Road,overpass,factory areas,bridge,harbour and etc.

Maintenance

The hot dip galvanization treatment can increase the service life of the steel pole without the environmental

pollution and no need for other daily maintenance. The following described types are specially designed for Africa

Market which can meet the regulated height and load standard of France electricity power company.

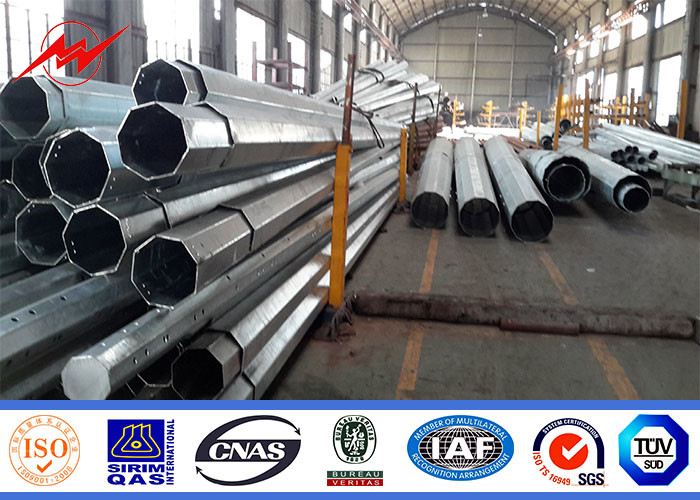

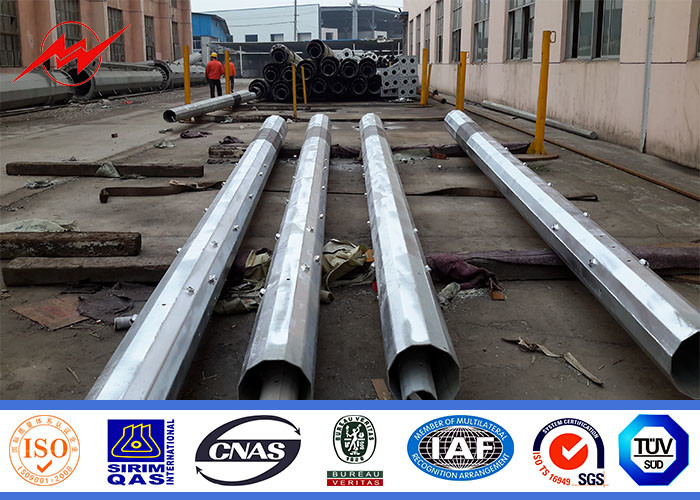

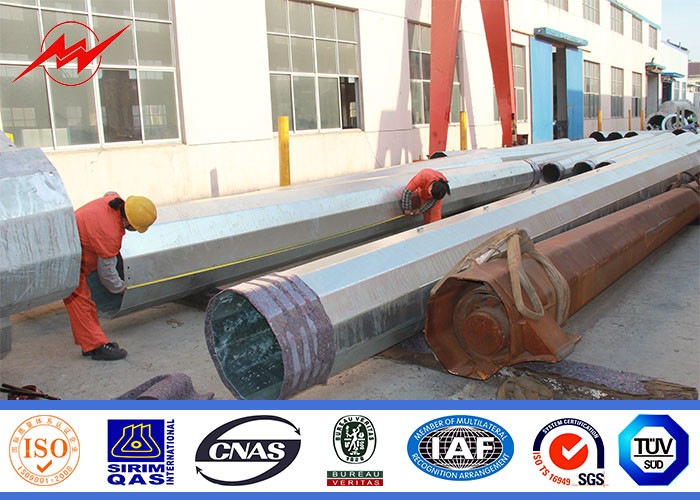

Production

Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic

submerged-arc. Then it is welded by the automatic submerged-arc welding machine.

Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support brackets,

ladder support, etc.) will be welded to the pole shaft.

Manufacturer Tolerance

- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm

Mechanical Property

The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at

0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than

1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around

2 times of design load.
