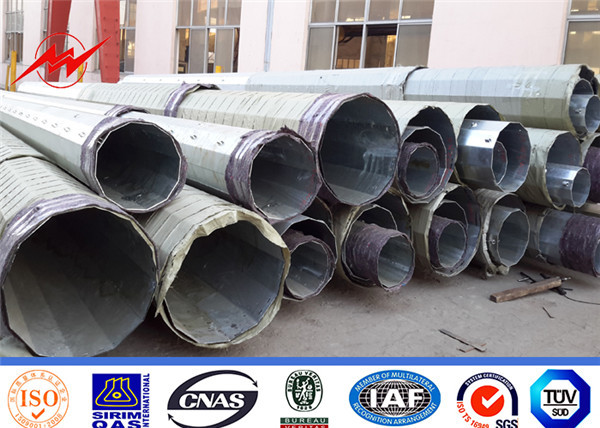

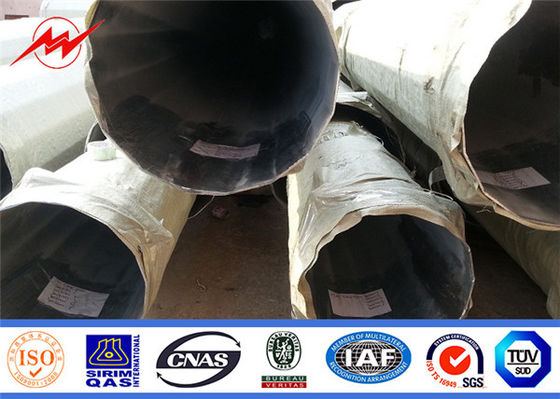

Length 14m 15m Electric Utility Pole Q355 Hot Rolled Steel

Description

Height:15m
Suit for:power transmission
Material:Q355 high quality Hot rolled steel or any special request is available
Torlance:+-2%
Length of per section:within 14m once forming without slip joint
Welding:AWS D1.1
Wind speed:always 35m/s
Warrenty:15 years
Lifetime:50 years
Design of pole:Against earthquake of 8 grade
Joint of poles:Insert mode,innerflange mode,face to face joint mode

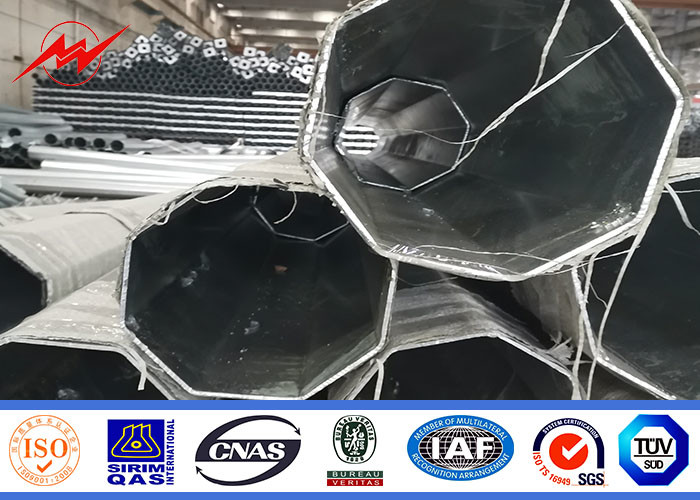

Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Base plate: Base plate is square or round and size as customers' requirement
Price Term: EXW, FOB, CFR or CIF



Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
- Yield Strength=355N/mm2
- Toughness remains the same under 20 degrees below zero.
- Galvanization is in accordance with NFA35503 Standard Class 1.

Manufacture Tolerance

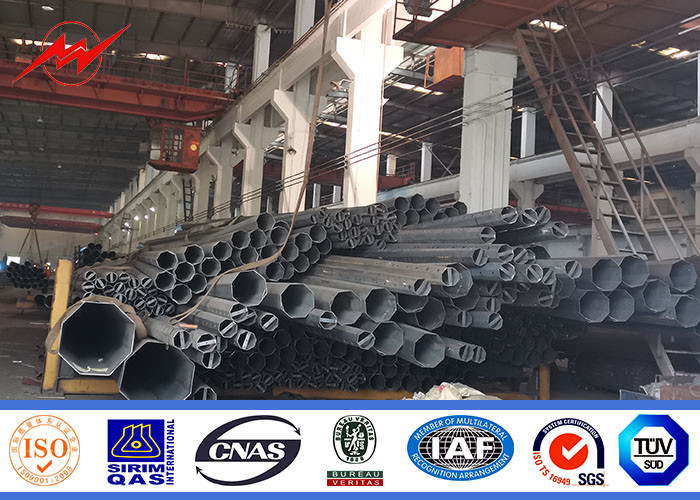

advanced machine




Quality Management System Certification


Supplier management

1.Does the company have a supplier assessment procedure?
Yes

2.Does the company have an updated list of approved suppliers?
Yes

3.Has the company established and implemented a standard procedure for purchasing contract review and approval?
Yes, with written standard procedures

4.Does the company keep its supplier assessment reports?
Yes, assessment reports are available for the last 1-3 years

5.Are the company’s purchasing documents sufficient to ensure product safety control and their customers’ requirements?
Yes, the purchasing document includes all the information required

6.Is there a procedure to conduct random product inspections after final packaging?
Yes, with clear standard and written inspection records


But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :

- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need
