45ft Steel Power Pole with Hot Dip Galvanizing and Epoxy Coating for Long-lasting Protection in Any Terrain

45ft Steel Power Pole with Hot Dip Galvanizing and Epoxy Coating for Long-lasting Protection in Any Terrain

Options:

• The Power Distribution Pole is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The Power Distribution Pole covers Voltage between 10-220KV.

• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.

• Standard Corrosion Protection: hot dip galvanising (above and in-ground)

• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.

• Pre-drilling for removable safety steps is available.

• Cross arms available.

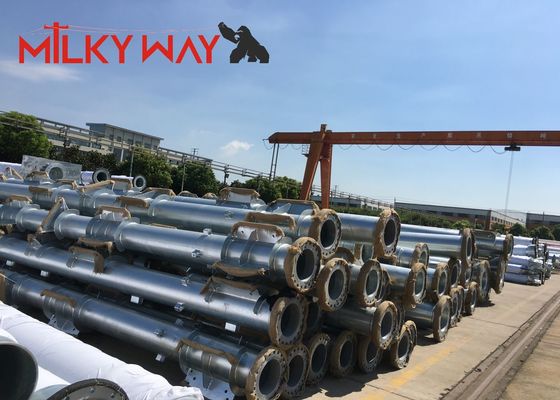

Workshop Picture

Pole Type

Single Circuit or Double Circuit

Technical Data Sheet(F=10KN)

More details and load,feel free to call me.

Available Foundation Types

Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson

Available Finishes

Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating

Standard Features of in-ground and base plate mounted

In-Ground Mounted:

12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish

Base Plate Mounted:

12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

The information to inquiry or purchase

- Steel pole height and force

- Cross arm type and length,the position to install in the steel pole

- The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

- Safety factor of the steel pole

- Wind speed

- Type of climbing rung

- Destination port

- Other.

Pole Application:

Transmission

Distribution

Steel Substation Structure

Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
