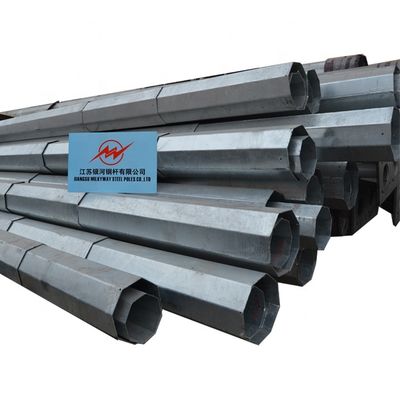

15M 20M 25M Electric Power Transmission Lines Steel Pole
Product Specifications
| Type | 15M 20M 25M Electric Power Transmission Lines Steel Pole |
| Suit For | Electricity distribution |
| Shape | Octagonal |
| Material | Usually Q345B/A572, minimum yield strength>=345n/mm²
Q235B/A36, minimum yield strength>=235n/mm²
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490 |
| Power | 10 KV ~550 KV |
| Design Load | 300~1000 Kg applied to 50cm from the top pole |
| Surface Treatment | Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of Pole | Against earthquake of 8 grade |
| Standard | ISO 9001 |
| Welding | We have passed flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard: AWS (American Welding Society) D 1.1 |
| Thickness | 1 mm to 30 mm |
Production Process
Raw Material
When purchasing the raw material (steel plate), one sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department performs elongation tests and chemical composition analysis to ensure the material meets all required standards before production.
Cutting
Cutting the qualified raw material into different lengths and widths. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials involves a motion control system to follow a CNC or G-code pattern. The focused laser beam melts, burns, vaporizes, or is blown away by a jet of gas, leaving an edge with high-quality surface finish.
Molding
Forming the cut steel plate into the specified shape (circular, polygonal, or other) as per drawing requirements. Our forming devices bend longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.
Welding
After molding, welding the steel plate together (typically longitudinal welds). Our A.C. inverter control ensures stable running and fast traveling speed. The three-spindle seam-tracking arc-guide mechanism guarantees alignment without aberrancy. The integrated main frame and welding machine with flux auto-recovering system ensures easy operation and high efficiency.
Galvanization
All poles are hot-dip galvanized internally and externally according to drawing specifications. Galvanization standards: IS2629-1985, BS729-1971.
Certifications
Company Profile
Jiangsu Milky Way Steel Poles Co., Ltd.
Established in 1991, located in Wuxi, East China near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and palaestra.
With extensive export experience since our first overseas order from Pakistan in 1991 (132 KV transmission poles), our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, Malaysia, etc.
As a BV, ISO, SGS approved supplier with over 20 years of production and export experience, we guarantee high-quality poles made from qualified materials by professional workers using advanced equipment.
Packing & Delivery
| Packing | Sea/road-worthy wooden packing material |
| Size | 40HQ |
| Weight | 26T |
Packaging can be customized to client requirements. Loading capacity per 40HQ or OT container is calculated based on actual specifications.
Why Choose Us?
- Reply to inquiries within 24 working hours
- Experienced staff fluent in English
- Customized designs available (UEM&UBM welcome)
- Unique solutions from professional engineers
- Special discounts and sales protection for distributors
- 20+ years manufacturing experience with competitive quality
- Samples available for large orders (shipping charges may apply)
- Superior raw materials, advanced machines, and skilled technicians ensure high-quality products
Frequently Asked Questions
Q1. How can I get a price for needed pole?
A: Provide exact dimensions (height, thickness, material, top/bottom diameter) or send a drawing for accurate pricing.
Q2. Do you accept small orders?
A: Yes, we welcome small wholesalers and aim to grow together.
Q3. Can you produce samples from our designs?
A: We welcome collaboration to bring your designs to reality.
Q4. How to apply to be your agent?
A: Send your proposal and company profile to delia@yin-he.com.
Q5. Tell me about your company?
A: Established in 1991, we manufacture and export steel poles worldwide, with products in over 70 countries.
Q6. Do you have special policies for brand companies?
A: Yes, we offer special support for VIP customers with established brands.
Q7. Can you provide Door to Door service?
A: Yes, we offer comprehensive shipping solutions with competitive rates.
