Hdg 9m Galvanized Street Light Pole Powder Coating With Cross Arms
hdg galvanized street light pole
,9m galvanized light pole
,9m galvanized street light pole
HDG 9m Outdoor Street Light Poles Powder Coating with Cross Arms
Specifications:
|
Height |
From 3 meter to 15 meter |
|
Suit for |
Airport, seaport, roadway, etc |
|
Shape |
Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
|
Material |
Q235B or Q345 by , same grade EN44 .SS400 |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Base plate mounted |

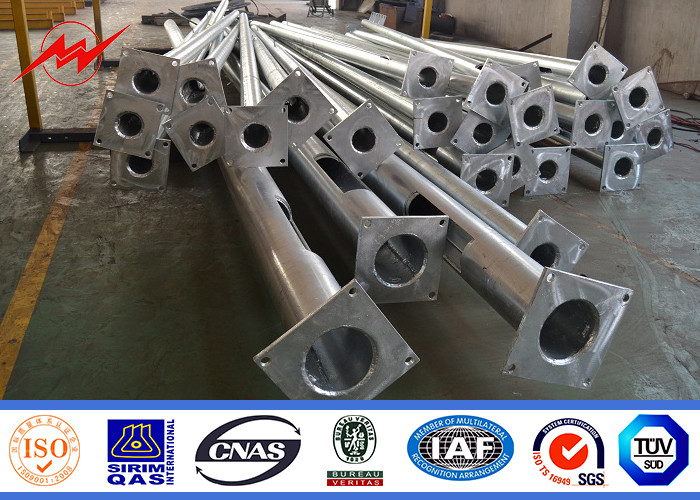

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
|
Wind Resistance |
Aganist wind pressure of 160Km/h |
|
Certificates |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 36mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
|
Packages |
Packing with plastic paper or according to client’s request. |
Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Package:
Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.
