Product Details:
Payment & Shipping Terms:
|
Shape: | Conoid ,multi-pyramidal,columniform,polygonal Or Conical | Type: | Straight Pole, Tensile Pole, Turn Pole |
---|---|---|---|
Power: | 10kv~550kv | Tolance Of Dimenstion: | +-2% |
Surface Treatment: | Hot Dip Galvanization | Design Of Pole: | Against Earthquake Of 8 Grade |
Highlight: | electric power pole,steel power pole |

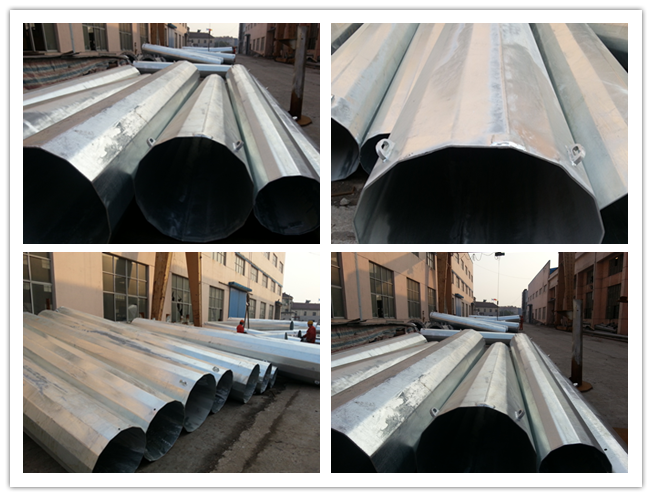

13.8kv Philippines Flood Light Pole Electrical Power Tubular Steel Pole
Specifications
Type |
Straight Pole ,Tensile Pole ,Turn Pole |
Suit for |
Electricity distribution |
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 ASTM573 GR65, GR50 ,SS400, |
Torlance of dimenstion |
+- 2% |
Power |
10 KV ~550 KV |
Safety Factor |
Safety factor for conducting wine : 8 |
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
Marks |
Nane palte through rivert or glue ,engrave , emboss as per customer requirement |
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power |
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
Design of pole |
Against earthquake of 8 grade |
Wind Speed |
160 Km/Hour . 30 m /s |
Minimum yield strength |
355 mpa |
Minimum ultimate tensile strength |
490 mpa |
Max ultimate tensile strength |
620 mpa |
Standard |
ISO 9001 |
Length of per section |
Within 14m once forming without slip joint |
Welding |
We has past flaw testing.Internal and external double welding |
Thickness |
1 mm to 30 mm |
Production Process |
Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal ) Calibration → Deburr Thread |
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , or OT can loading specification and data. |
1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Customized designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.
WE ARE MANUFACTURER SINCE 1992
Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.
Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
ADVANTAGES
OEM&ODM service available
Great anti-corrosion performance
Long life time: 25 years long life span
BAOSTEEL Q235 steel, high strength and great resilience
Dual protection treatments: hot galvanized first and then powder paint
Multiple painting colors available: Default color Gray. Custom available
Dismountable arms and foundation kit: Only a screwdriver, requiring no welding
