Product Details:
Payment & Shipping Terms:
|
Product Name: | Steel Utility Pole | Application: | Electrical Power Transmission |
---|---|---|---|
Standard: | ISO9001-2008 | Welding Standard: | AWSD 1.1 |
Surface Treatment: | Galvanization | Warranty: | 15 Years |
Highlight: | 18m steel utility pole,33kv steel utility pole,hdg steel utility pole manufacturers |

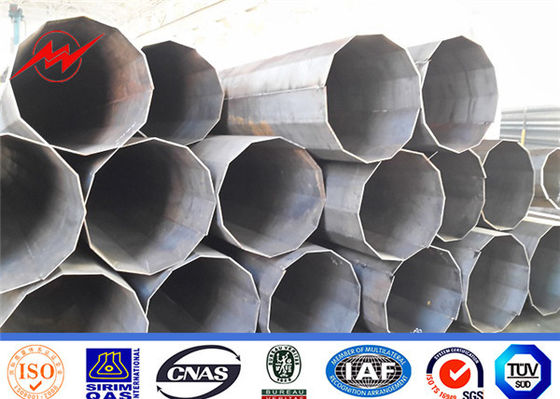

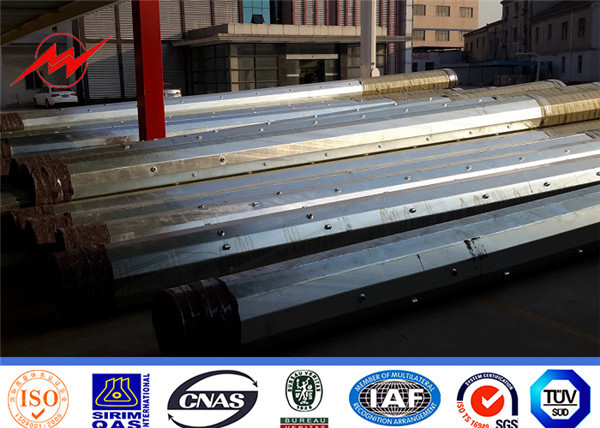

18m steel utility pole power line pole For 33kv transmission line steel pole tower
Specifications:
series | Outside Diametar | Wall Thicness | Plain and Tubes | |
mm | Min. | mm /SWG | Kg./M | Mtrs./Ton |
15 L | 21.3 | 2 | 0.947 | 1058 |
M | 2.6 | 1.21 | 826 | |
H | 3.2 | 1.44 | 694 | |
20 L | 26.9 | 2.3 | 1.38 | 725 |
M | 2.6 | 1.56 | 641 | |
H | 3.2 | 1.87 | 535 | |
25 L | 33.7 | 2.6 | 1.98 | 505 |
M | 3.2 | 2.41 | 415 | |
H | 4 | 2.93 | 341 | |
32 L | 42.4 | 2.6 | 2.54 | 394 |
M | 3.2 | 3.1 | 323 | |
H | 4 | 3.79 | 264 | |
40 L | 48.3 | 2.9 | 3.23 | 310 |
M | 3.2 | 3.56 | 281 | |
H | 4 | 4.37 | 229 | |
50 L | 60.3 | 2.9 | 4.08 | 245 |
M | 3.6 | 5.03 | 199 | |
H | 4.5 | 6.19 | 162 | |
65 L | 76.1 | 3.2 | 5.71 | 175 |
M | 3.6 | 6.42 | 156 | |
H | 4.5 | 7.93 | 126 | |
80 L | 88.9 | 3.2 | 6.72 | 149 |
M | 4 | 8.36 | 120 | |
H | 4.8 | 9.9 | 101 | |
90 L | 101.6 | 3.6 | 8.7 | 115 |
M | 4 | 9.63 | 144 | |
H | 4.8 | 11.5 | 87 | |
100 L | 114.3 | 3.6 | 9.75 | 103 |
M | 4.5 | 12.2 | 82 | |
H | 5.4 | 14.5 | 69 | |
110 L | 127 | 4.5 | 13.6 | 74 |
M | 4.8 | 14.5 | 69 | |
H | 5.4 | 16.2 | 62 | |
125 L | 139.7 | 4.5 | 15 | 67 |
M | 4.8 | 15.9 | 63 | |
H | 5.4 | 17.9 | 56 | |
135 L | 152.4 | 4.5 | 16.4 | 61 |
M | 4.8 | 17.5 | 57 | |
H | 5.4 | 19.6 | 51 | |
150 L | 165.1 | 4.5 | 17.8 | 56 |
M | 4.8 | 18.9 | 52 | |
H | 5.4 | 21.3 | 47 | |
150 L | 168.3 | 4.5 | 18.2 | 55 |
M | 4.8 | 19.4 | 52 | |
H1 | 5.4 | 21.7 | 46 | |
H2 | 6.3 | 25.2 | 40 |
Description:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Welding
Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB and AWS D 1.1
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Design: We have our standard pole with our design, OEM and ODM is also accpetable

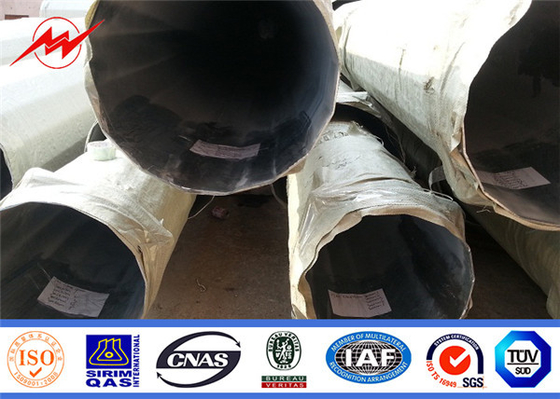

Packages: Standard seaworthy
Delivery time: with two weeks after confirm the order.
