220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001

China 220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 supplier
220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 supplier 220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 supplier 220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 supplier 220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 supplier

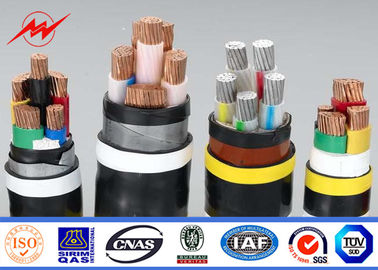

Large Image :  220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001

Product Details:

Place of Origin: CHINA
Brand Name: BAO WO
Certification: ISO/CE/UL/CSA
Model Number: High voltage cable

Payment & Shipping Terms:

Minimum Order Quantity: 3000 Meters
Price: USD1-100 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
Detailed Product Description
Type: Dc Power Cable,high Voltage Cable Surface: PVC Or XLPE Insulation
Voltage: 0.6kv—35kv Model Number: YJV/YJLV/VV/VLV/KVV/JKV/JKLV/JL/YJHLV6
Standard: ISO9001 JB8734.1~5-1998 Jacket: PE PVC/XLPE
Coductor: Copper Or Aluminum Alloy Set-up Temperature: Lower Than 0℃
High Light:

cables and wires

,

aluminum electrical wire

220kv high voltage 300 mm² copper dc power cable multi cores



Specifications:

Section of conductor(mm ²): 1.5~630 mm2

sheath:

PVC/XLPE

Color: BLACK

Outer Sheath:

PVC or PE

Conductor

99.5% Pure Oxygen Free Copper or Aluminum alloy

Voltage :

up to 220kv

No. of cores:

1, 2, 3, 4, 5, 3+1, 4+1, 3+2

Standards:

The Products are mainly complying with IEC 60502 standard,  also can be produced according to OEM requirements and others standars, Such as BS Standard, DIN standard, ASTM standard, ETC.

INSULATION THICKNESS(mm) :

1.0—10

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Delivery time:

10—20 days

Payment Terms:

L/C,D/A,D/P,T/T, Western Union

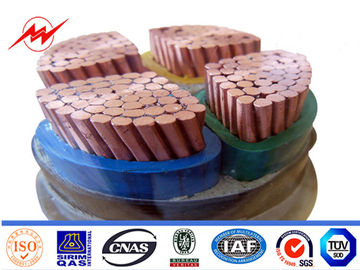

  220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 0

220kv dc power cable

high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.




Properties of  price high voltage dc power cable
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay.Otherwise it should be preheated.
4. Excellent electrical performance, resistance to chemical corrosion.
5. Can stand advisable traction when laid.Can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

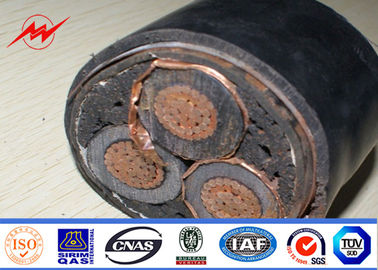

  220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 1

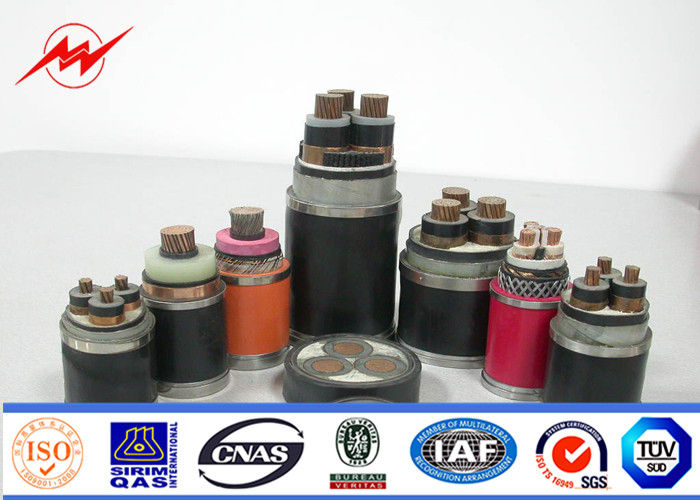

  220kv 300 Mm² Copper Dc Power Cable PVC Or XLPE Insulation ISO9001 2

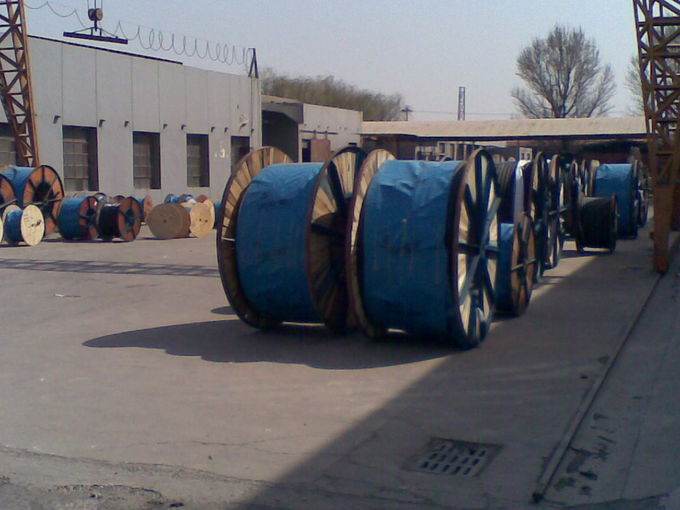

Packing of high voltage dc power cable .
1. Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2. By standard wooden drum or roll.
3. Drum size:1100mm*1100mm*1100mm.
4. as customer rquest
