Product Details:
Payment & Shipping Terms:
|
Product Name: | 40FT Hot Dip Galvanized Steel Utility Pole For Trasmission Line | Shape: | Round,Conical,Octagonal |
---|---|---|---|
Height: | 4M-30M | Material: | Steel,Q235,Q345,Gr65 |
Thickness: | 2.5mm-16mm | Surface Finished: | Hot Dip Galvanized |
Standard: | /BV/ISO9001 | ||
Highlight: | metal utility poles,electric telescoping pole |

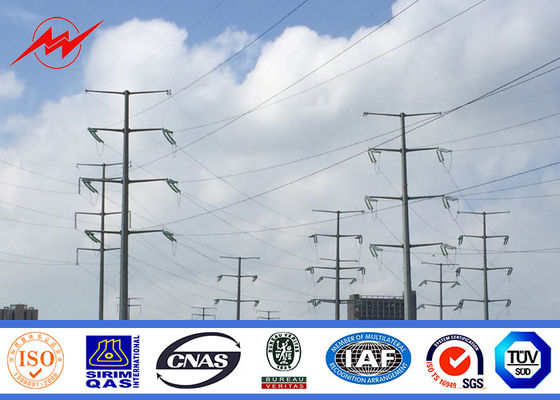

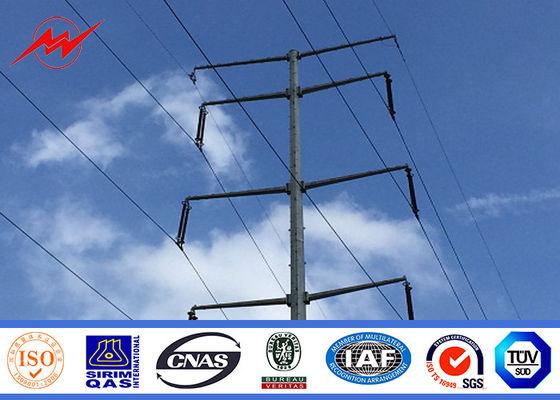

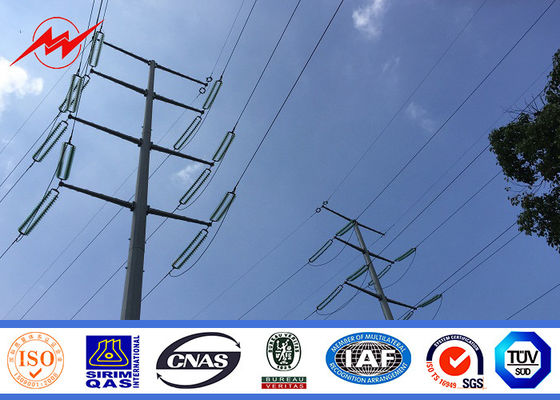

40FT hot dip galvanized Steel Utility Pole for trasmission line
Specification:
Torlance of the dimenstion |
+- 2% |
Power |
10 KV ~550 KV |
Safety Factor |
Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment |
Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required. |
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
Design of pole |
Against earthquake of 8 grade |
Wind Speed |
160 Km/Hour |
Minimum yield strength |
355 mpa |
Minimum ultimate tensile strength |
490 mpa |
Max ultimate tensile strength |
620 mpa |
Standard |
ISO 9001 |
Length of per section |
Within 14m once forming without slip joint |
Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness |
1 mm to 30 mm |
Production Process |
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Package
1. Normal:Cover by Mat or Straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of thepole.
2. Customized Design is available.
3. Container:40HQ,40GP,20GP
Product Material:
All of our material are purchased from famous mill factory to assure the quality
1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Inspection
Company Introduction
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on- NEA 220KV 30ft electric lighting poles factory
