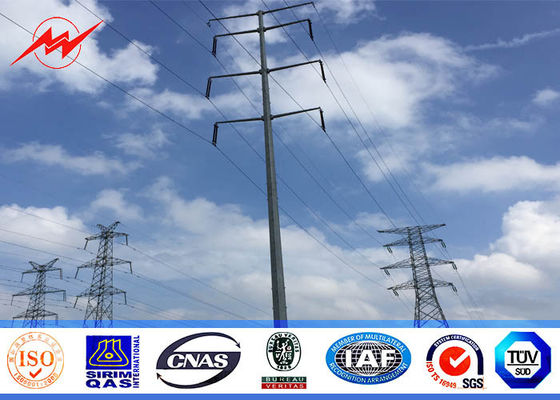

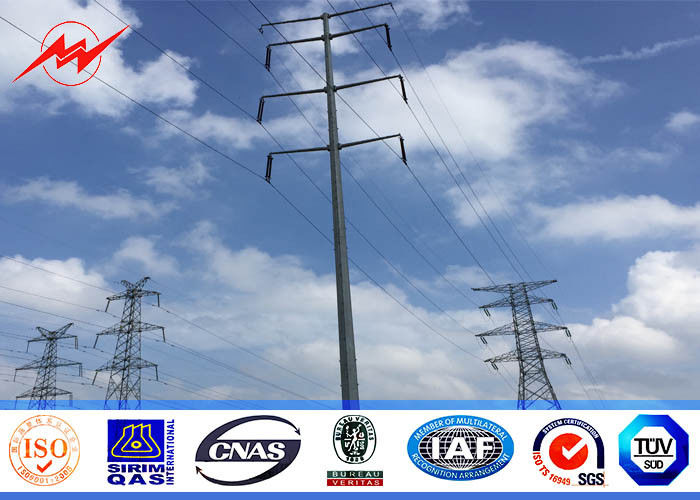

Conical 40ft 138kv Steel Utility Pole for electric transmission distribution line
Application:
Transmission Applications
Light Duty Steel Poles
Custom Design Transmission Poles
Steel H-Frame Poles
Substation Applications
Dead End Structures
A-Frames and H-Frames
Special Application Structures
Low Side Supports – Buss, Switch, and Other equipment
Static and Shield Wire Poles
Workshop
Technical Data Sheet(F=10KN)
| Dimension | 10m | 11m | 11.8m | 13m | 14m | 16m | 18m |
| DI(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| D2(mm) | 360 | 380 | 400 | 400 | 410 | 445 | 475 |
| T(mm) | 3 | 3 | 3 | 3 | 3.5 | 3.75 | 3.75 |
| h(m) | 1.6 | 1.8 | 1.9 | 2.1 | 2.3 | 2.6 | 3 |
More details and load,feel free to call me.
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating
Warehouse
Standard Features of in-ground and base plate mounted
In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
