|Product Name:||Hot Outside Towers Fixtures Mono Pole Tower With 400kv Cable||Design:||Customized|
|Surface Treatment:||Hot Dip Galvanization||Dimension Torlance:||+- 2%|
|Welding Standard:||AWS D 1.1||Standard:||ISO|
|Galvanization Standard:||ASTM A 123|
monopole transmission tower,
monopole antenna Tower

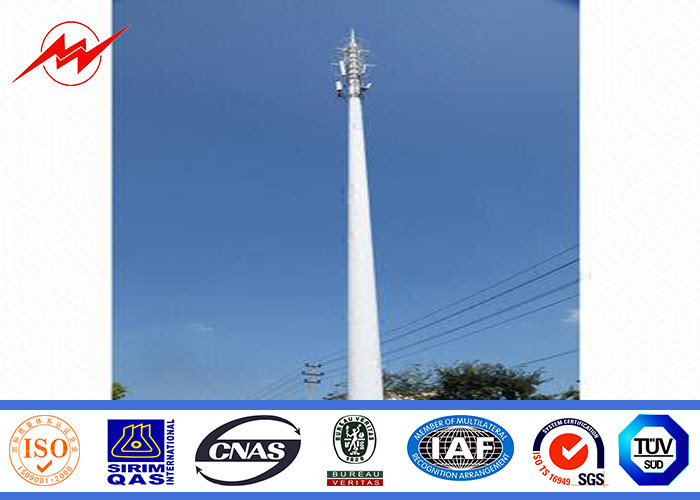

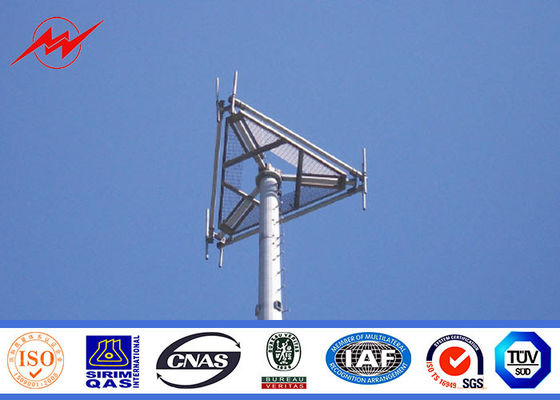

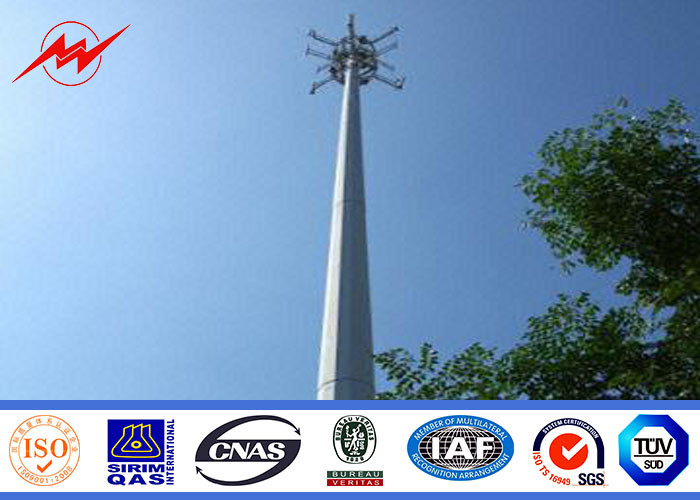

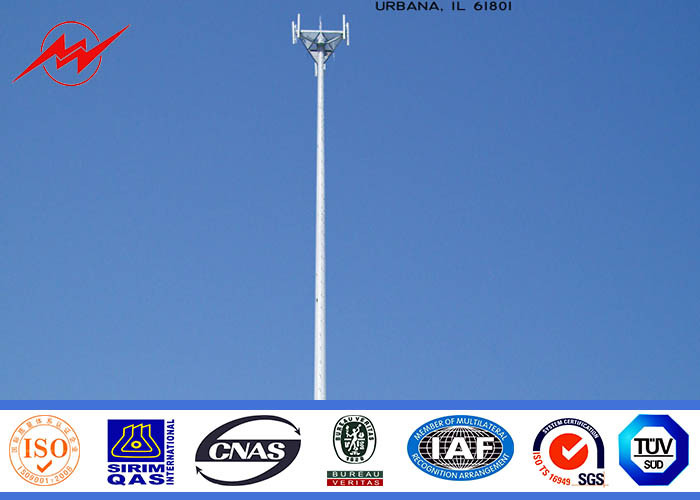

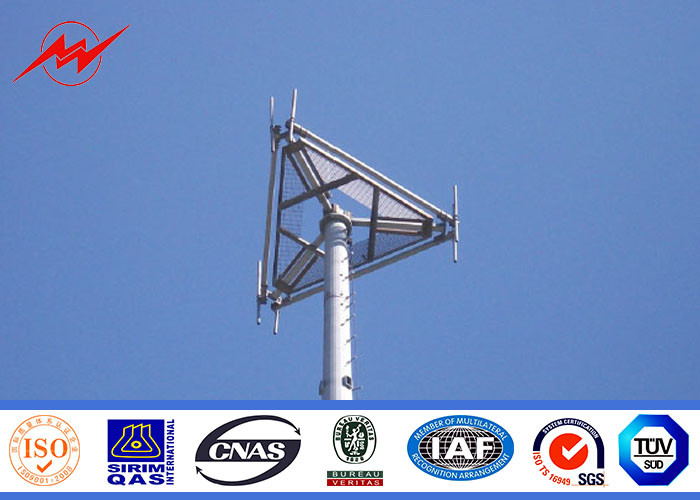

Hot Outside towers fixtures Mono Pole Tower with 400kv cable
|Working atmosphere of lighting fixture||-35 ℃~+45 ℃|
|Surface treatment||Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.|
|Joint of Poles||Insert mode,innerflange mode,face to face joint mode .|
|Wind Speed||160 Km/Hour|
|Minimum yield strength||355 mpa|
|Minimum ultimate tensile strengt||490 mpa|
|Max ultimate tensile strength||620mpa|
|Length of per section||Within 14m once forming without slip joint|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS (American Welding Society ) D 1.1
|Thickness||1 mm to 30 mm|
|Production Process||Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages|
|Packages||Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.|
|Style||Size and styles are veriable as per customer request|
All of our material are purchased from famous mill factory to assure the quality.
1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
We have completed many big and important project all over the world and win the trust of our client.
if you have any question or need additional information ,pls feel free to contact me !
