Name: 8-20m Single Arm LED High Mast Light Pole Street Lighting Pole
Brand: Jiangsu milky way steel poles co.,ltd
SKU: High Mast Pole
Price: 549.00 USD
Availability: InStock

8-20m Single Arm LED High Mast Light Pole Street Lighting Pole

1 pcs

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Tolerance: +/-2%

Product Name: 8-20m Single Arm LED High Mast Steel Street Lighting Pole For UAE Dubai Highway

Pole Finished: Galvanized High Mast Pole

Payment Terms:: T/T

Supply Ability:: 2000pcs Per Week

Safty Facor: 1.8

Highlight:

high mast lighting pole

Sports Light Poles

Basic Infomation

Place of Origin: China,Jiangsu

Brand Name: MilkyWay

Certification: ISO9001/BV/

Model Number: High Mast Pole

Payment & Shipping Terms

Packaging Details: As customer request

Delivery Time: 20 working days after received your payment

Payment Terms: T/T, L/C at sight

Supply Ability: 300pcs per day

Gallery

8-20m Single Arm LED High Mast Light Pole Street Lighting Pole

Product Description

8-20m single arm LED High Mast steel Street Lighting Polefor UAE Dubai highway

High mast pole Gr65 steel materialsmooth welding noedgeHDG ,powder coated

1) Steel materials:Gr65 or ss400

2) 8-15 meters pole,vary from person to person
3) Lithium arc welding,tighten
4) Hot-dip galvaniation and powder coating,anti-corrosion,aging

resistant
5) Pole shape:square and round conical,tubular stepped

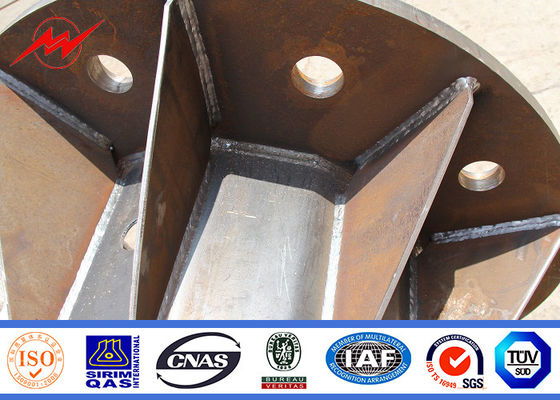

6) Base plate mounted:base plate is square or round in shape with slotted holes for anchor bolt
7) Single,double or triple arm
8) Fair price and easy maintance
9) Strict control and test measures ensure the high quality

These above instructions are for reference only.
Color, size, specifications and packaging mainly depend on customers' demand

8-20m Single Arm LED High Mast Light Pole Street Lighting Pole 0

Specification:	20-50 meters high mast pole
Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

8-20m Single Arm LED High Mast Light Pole Street Lighting Pole 1

Options:
• The Sports Lighting Pole Series is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The Sports Lighting Pole Series is available in base plate mounted or direct bury installed.
• All Sports Lighting Poles are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Ladders or Climb Pins.
• Arms and brackets.
• Service platform.
• Lightening Rod

8-20m Single Arm LED High Mast Light Pole Street Lighting Pole 2
