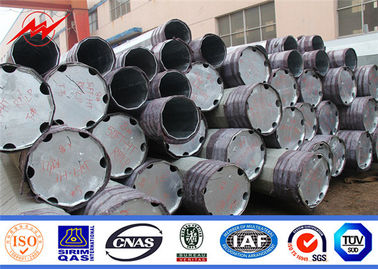

Octagonal steel Electric transmission poles Galvanized, Quality Metal Utility Poles
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Specifications:
| Torlance of the dimenstion |
+- 2% |
| Power |
10 KV ~550 KV |
| Safety Factor |
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
|
| Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
| Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment |
Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.
|
| Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
| Design of pole |
Against earthquake of 8 grade |
| Wind Speed |
160 Km/Hour . 30 m /s |
| Minimum yield strength |
355 mpa |
| Minimum ultimate tensile strength |
490 mpa |
| Length of per section |
Within 14m once forming without slip joint |
| Welding |
We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
| Thickness |
1 mm to 30 mm |
| Production Process |
Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
|
Technical information-Cross Arm
The above listed is the most frequently used design,and is made from angel steel.And the cross arm will be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and the pole shaft.If you have any other requirements on the design,material and connecting method for cross arm,pls contact us.
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder

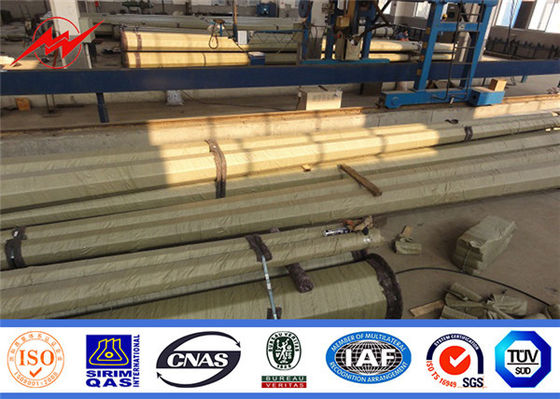

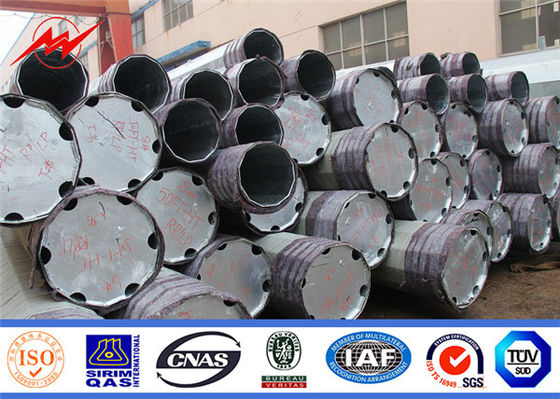

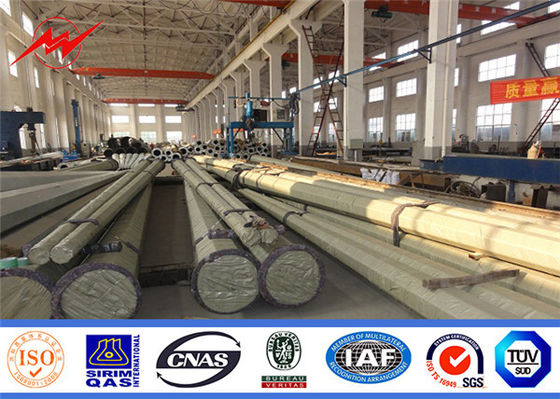

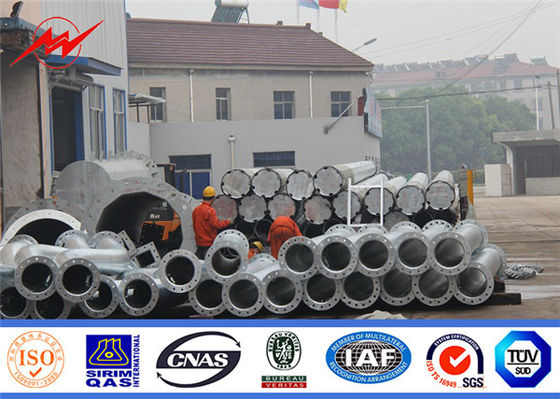

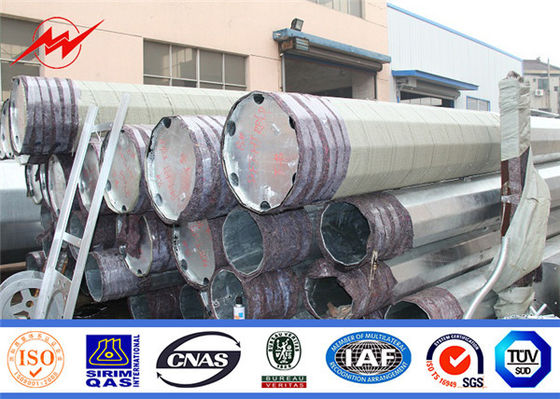

More Pitures:
Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.
