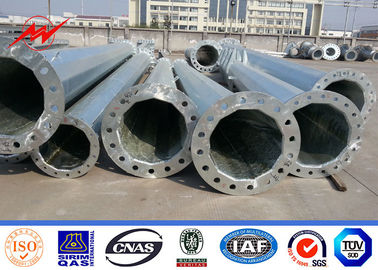

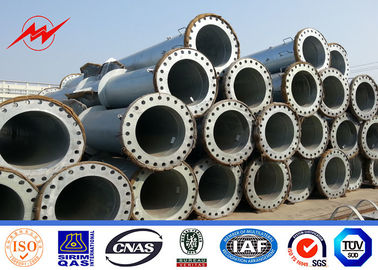

line 30ft high voltage electrical telescoping steel utility poles power transmission pole

1 pcs
MOQ
Negotiation
Price
line 30ft high voltage electrical telescoping steel utility poles power transmission pole
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Utility Power Poles
Application: Tranmission Line
Design: Customized
Surface Treatment: Hot Dip Galvanization
Welding Standard: AWS D1.1
Galvanization Thickness: Average 86um
Material: Q345
Highlight:

electrical transmission poles

,

high voltage pole
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Utility Power Poles
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Product Description



line 30ft high voltage electrical telescoping steel utility poles power transmission pole





 Specifications:



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
M 2.6 1.21 826
H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
M 2.6 1.56 641
H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
M 3.2 2.41 415
H 4 2.93 341
32 L 42.4 2.6 2.54 394
M 3.2 3.1 323
H 4 3.79 264
40 L 48.3 2.9 3.23 310
M 3.2 3.56 281
H 4 4.37 229
50 L 60.3 2.9 4.08 245
M 3.6 5.03 199
H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
M 3.6 6.42 156
H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
M 4 8.36 120
H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
M 4 9.63 144
H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
M 4.5 12.2 82
H 5.4 14.5 69
110 L 127 4.5 13.6 74
M 4.8 14.5 69
H 5.4 16.2 62
125 L 139.7 4.5 15 67
M 4.8 15.9 63
H 5.4 17.9 56
135 L 152.4 4.5 16.4 61
M 4.8 17.5 57
H 5.4 19.6 51
150 L 165.1 4.5 17.8 56
M 4.8 18.9 52
H 5.4 21.3 47
150 L 168.3 4.5 18.2 55
M 4.8 19.4 52
H1 5.4 21.7 46
H2 6.3 25.2 40
175 L 193.7 4.8 22.4 45
M 5.4 25.1 40
H 5.9 27.3 37
200 L 219.1 4.85 25.4 39
M 5.6 29.5 34
H 5.9 31 32
225 H 244.5 5.9 34.7 29
250 H 273 5.9 38.9 26
300 H 323.9 6.3 49.3 20
350 H 355.6 8 68.6 15



 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

line 30ft high voltage electrical telescoping steel utility poles power transmission pole 0

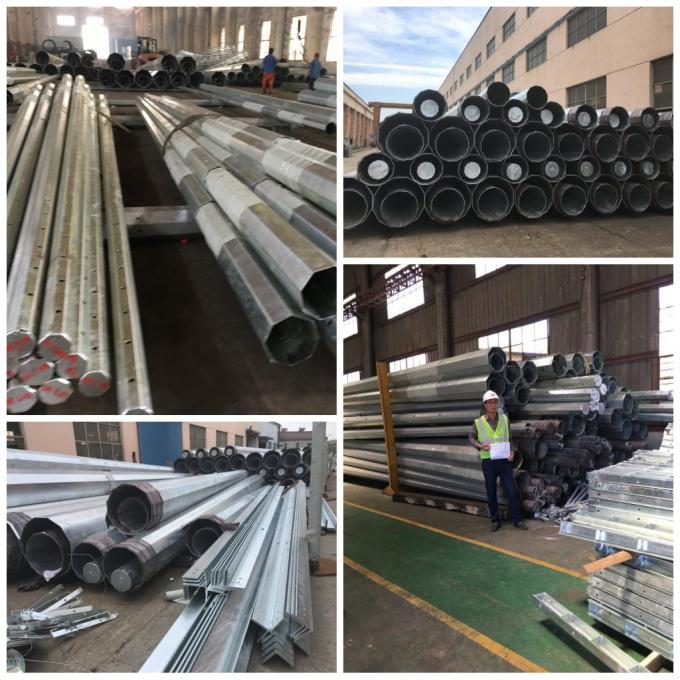

 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

 line 30ft high voltage electrical telescoping steel utility poles power transmission pole 1





 Company History

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 line 30ft high voltage electrical telescoping steel utility poles power transmission pole 2
