Custom Transmission Line Galvanised Steel Pole 25 Footer 30 Footer 35 Footer

one 40 HQ
MOQ
negotiation
Price
Custom Transmission Line Galvanised Steel Pole 25 Footer 30 Footer 35 Footer
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel,Q345,With Miminum Yield Strength 345mpa
Application: Electric Power Transmission And Distribution
Surface Treatment: Hot Dip Galvanized,Hot-dip-galvanized Following ASTM123
Color: Customer Request
Height: By Client Required
Highlight:

steel power pole

,

transmission line poles
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: 25 footer 30 footer 35 footer Transmission Line Electrical Power Pole
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 4 weeks after confirming
Payment Terms: T/T, L/C
Supply Ability: 300 pieces pole per day
Product Description



25 footer 30 footer 35 footer Transmission Line Electrical Power Pole



Application Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of dimenstion Q345B/A572,minimum yield strength>=345n/mm2
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8  Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Name palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Standard ISO 9001
Welding We have past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Raw material test → Cutting →Molding or bending →Weldng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages

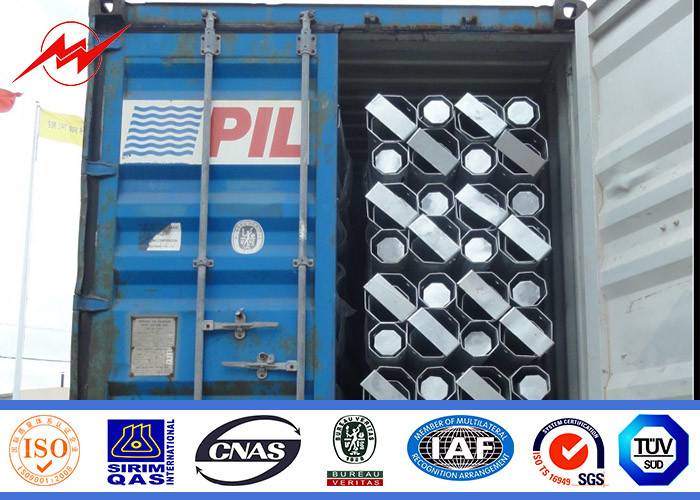

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.



Custom Transmission Line Galvanised Steel Pole 25 Footer 30 Footer 35 Footer 0



Advantage



1. We can supply the products base on client required drawing , also can supply the design for any kinds of power distribution poles( electric poles) ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,flag poles ,traffic light poles .

2. Matercials :hot rolled coil from Q235 and Q345 .

3. Treating: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 11meters once forming( single section)

6. Thickness:3mm. 6mm, 8mm, 12mm , etc

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered

8. Easy install and maintenance.


Our Services


1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video



Custom Transmission Line Galvanised Steel Pole 25 Footer 30 Footer 35 Footer 1



Custom Transmission Line Galvanised Steel Pole 25 Footer 30 Footer 35 Footer 2
