Home /Products/Street Light Poles/12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole

12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole

ONE CONTAINER
MOQ
USD 130-180POLE
Price
12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole
Features Gallery Product Description Request A Quote
Features
Specifications
MATERIAL: S355JR
APPLICATION: Electricity Distribution
THICKNESS: 2.5-10MM
SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um
WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS
WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
Highlight:

12meter double arm street light pole

,

12meter galvanized street light pole

,

iso double arm street light pole
Basic Infomation
Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV
Payment & Shipping Terms

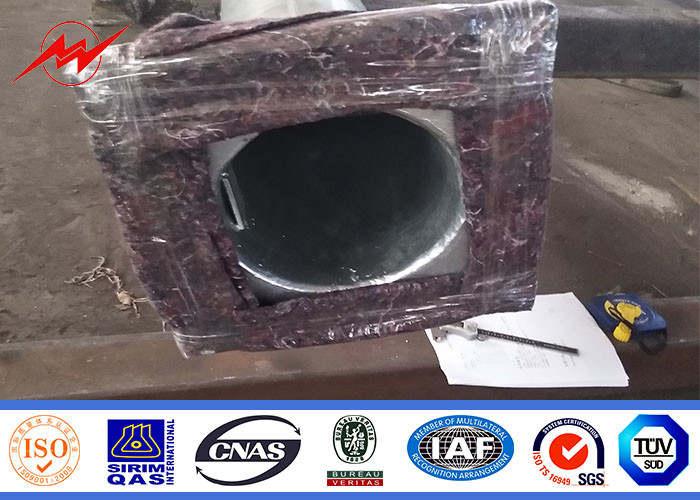

Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Product Description

pecification:



1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization





Drawings:



12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole 0



Type Street Lamp pole, lamp post . Lamp column
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
Suit for Highway
Roadway
Residential subdivisions
Commercial development
Option Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.
Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread

→Packages





12meter Iso Certificate Hot Dip Galvanization Double Arm Street Light Pole 1



Tag:

street lighting poles

galvanized street light pole

street lamp pole
