Home /Products/Steel Power Pole/2 Sections Steel Power Pole 70ft 75ft Electric Transmission

2 Sections Steel Power Pole 70ft 75ft Electric Transmission

500 pieces
MOQ
130-180USD/pieces
Price
2 Sections Steel Power Pole 70ft 75ft Electric Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: 70FT 75FT
Application: Electrical Power Transmission
Surface Treatment: Hot Dip Galvanization
Thickness: 1-30mm
Protective Level: IP65
Shape: Round Polygonal
Size: Customized Drawing
Voltage: 10-550kv
Certification: ISO BV
Highlight:

2 sections steel power pole

,

steel power pole 70ft

,

electric transmission galvanized metal pole
Basic Infomation
Place of Origin: Jinagsu
Brand Name: milky way
Certification: ISO9001:2015
Model Number: Steel Power Pole
Payment & Shipping Terms
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: 2 weeks always
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 per month
Product Description





Product Description



Type
Straight Pole ,Tensile Pole ,Turn Pole
Material:
Usually Q345B/A572,minimum yield strength>=345n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Shape
polygonal or conical
Safety Factor
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg
1000-2000Kg appliced to 300cm from the to pole
Marks
Nane plate through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode,inner flange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Length of per section
Within 14m once forming without slip joint
Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Production Process
Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Minimum yield strength
355mpa
Minimum ultimate tensile strength
490mpa
Max ultimate tensile strength
620mpa



2 Sections Steel Power Pole 70ft 75ft Electric Transmission 0

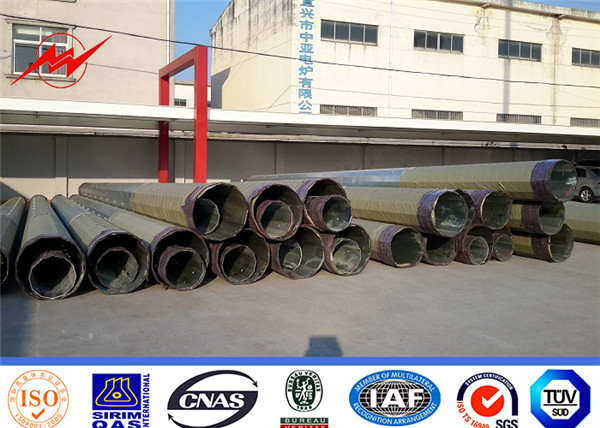

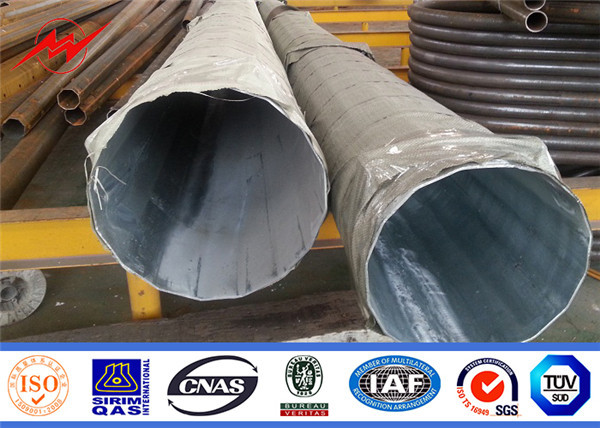

 Detailed Images

2 Sections Steel Power Pole 70ft 75ft Electric Transmission 1



2 Sections Steel Power Pole 70ft 75ft Electric Transmission 2





Our Company



                                                    OVERSEAS PROJECT
COUNTRY UTILITY VOLTAGE LEVEL TYPE YEARS OF SUPPLY
PHILIPPINES NEA,NGCP 69KV 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT EVERY YEAR
GHANA GHANA ELERCITY COMPANG   10m,11m 2015
PAKISTAN WAPDA 132KV SPA,APD,SPG 2013
SAUDI ARABIC SAUDI ELECTRICITY COMPANY   10M ELECTRIC POLE 2011
ECUADOR CELEC 138KV PB-B40 2009
MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES.

Jiangsu Milky Way Steel Poles Co.,Ltd.

Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on
We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .







Packing & Delivery

Packing

Package: Plastic paper or according to clients requirement.

Delivery

for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
