Home /Products/Electrical Power Pole/30m Electrical Transmission Line Pole Hot Dip Galvanized

30m Electrical Transmission Line Pole Hot Dip Galvanized

one 40 HQ
MOQ
negotiation
Price
30m Electrical Transmission Line Pole Hot Dip Galvanized
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel,GR65,With Miminum Yield Strength 460mpa
Application: Electric Power Transmission And Distribution
Surface Treatment: Hot Dip Galvanized,Hot-dip-galvanized Following ASTM123
Color: Customer Request
Height: By Client Required
Name: Metal Power Poles
Highlight:

30m transmission line pole

,

Electrical transmission line pole

,

Hot Dip Galvanized power transmission pole
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: Hot Dip Galvanized 7.5m 9m Electrical Power Pole for Electrical Transmission
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 4 weeks after confirming
Payment Terms: T/T, L/C
Supply Ability: 300 pieces pole per day
Product Description

Hot Dip Galvanized Electrical Power Pole for Electrical Transmission





Application Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of dimenstion GR65/A572,minimum yield strength>=460n/mm2
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8  Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Name palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Standard ISO 9001
Welding We have past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Raw material test → Cutting →Molding or bending →Weldng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.









Our company

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port . Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.






Our Services


1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video

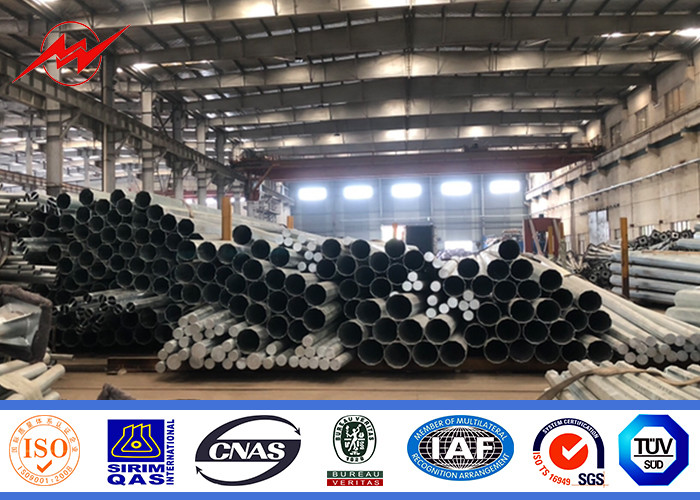

30m Electrical Transmission Line Pole Hot Dip Galvanized 0

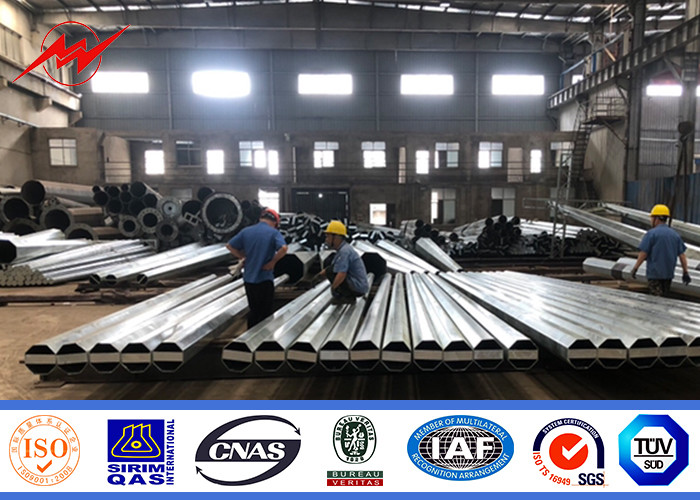

30m Electrical Transmission Line Pole Hot Dip Galvanized 1

30m Electrical Transmission Line Pole Hot Dip Galvanized 2
