80m High Mast Tower Light Conical High Mast Lighting Columns

ONE CONTAINER
MOQ
USD 130-180POLE
Price
80m High Mast Tower Light Conical High Mast Lighting Columns
Features Gallery Product Description Request A Quote
Features
Specifications
MATERIAL: S355JR
APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM
SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um
WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS
WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
Highlight:

HDG high mast tower light

,

80m high mast tower light

,

Conical high mast lighting columns
Basic Infomation
Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV
Payment & Shipping Terms

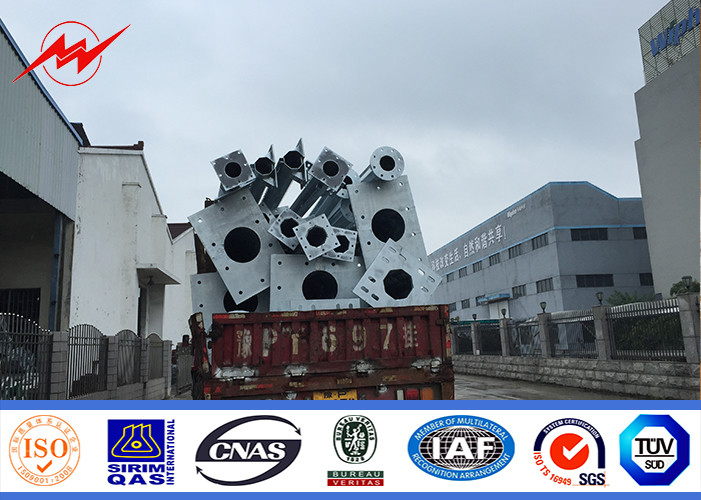

Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Product Description

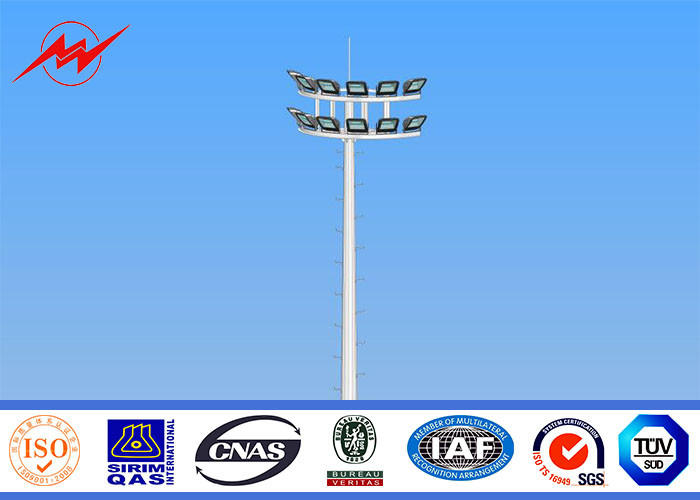

Circle 22M HDG High Mast Pole with 7 Lamps for Plaza Lighting





Specifications:



Height 20m-80m
Max length per section 14 m
Thickness 2.5mm~30 mm
Shape Conical or polygongal tapered
Material Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360
Lamp Power 9 W~800 W (HPS/MH)
Electroshock resistant protective grade Grade Ⅰ
Finish hot dipgalvanization ,blasting,powder coating ,painting
Galvanization standard ASTMA 123 / EN ISO 1461
Welding AWS D 1.1 /BS EN 1011-1,BS EN 1011-2
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Lifting system

Lifter fixed in the inner of the pole with lifting speed of

3 ~ 5 meter per minute

Euqiped with ectromagnetism brake and break-proof device, manual

opeation applied under power cut.
Head frame

Our headframe can be designed as per customer requirment

to carry camera or industrial antenna.





Descripition of material:


1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel


Feature:


Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light







Applications:



Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

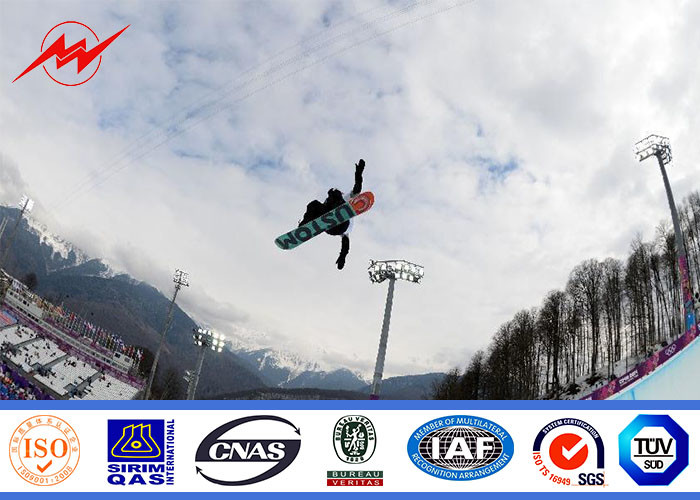

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower
