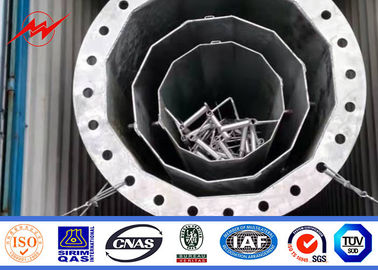

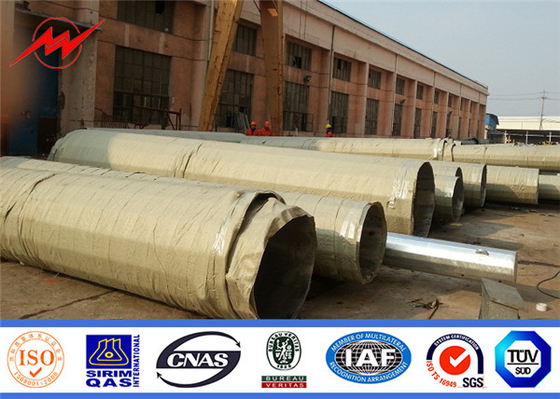

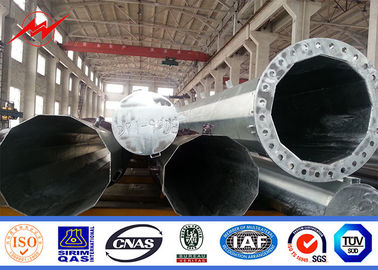

35M Octagonal High Mast Pole with Platform & Raising System
We offer a comprehensive range of High Mast Poles that is used in area lighting. High mast lighting is preferred over conventional lighting, because it can achieves very large space to height ratios. It can illuminate large areas without the need for numerous lighting columns.
Quick Product Description-High Mast Lighting Pole
| Item | 35MTR |
|---|
| Material Construction | Q345(Gr50) |
| No. of Longitudinal Welds | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length | 10375mm |
| Base & Top dia (OAF) | 450/200mm |
| Thickness of galvanization(Average) | 86 Microns |
| Size of opening door at base | 360 x 1400 mm |
| Size of base plate diameter | 650 mm |
| Size of base plate thickness | 32 mm |
| Number of foundation bolts | 12 |
| Bolt diameter | 28 mm |
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Rasing System
