60ft 70ft 75ft 1200kg Galvanised Steel Posts For Transmission Power Line

ONE CONTAINER
MOQ
USD 130-180POLE
Price
60ft 70ft 75ft 1200kg Galvanised Steel Posts For Transmission Power Line
Features Gallery Product Description Request A Quote
Features
Specifications
MATERIAL: S355JR
APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM
SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um
WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS
WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
Highlight:

60ft galvanised steel posts

,

transmission power line galvanised steel posts

,

70ft galvanized pole

Basic Infomation
Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV
Payment & Shipping Terms
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Product Description

Specifications

Material: high quality Q345 hot rolled steel
Mounting Height: 3-30m or according to the requirements of customers
Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that

folded into

required shape and welded longitudinally by automaticarc welding machine



Brackets: Single or double brackets are in the shape and dimension as per customers requirement
Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per

customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating: Pure polyester powder painting, color is optional







Detailed Product Description:



Satisfactory after-sales service
Professional technical team .
First-class leadership team.



The power pole of our company are made from quality sheets through bending,forming, automatic welding, hot dip galvanization and powder coating. We owned advanced production-line, it included Flatting machine, Steel plate shearer, bending machine,Auto-closed up machine, submerged arc welding machine and powder coating line, and our workmanship and quality control was achieved high opinion from our clients.

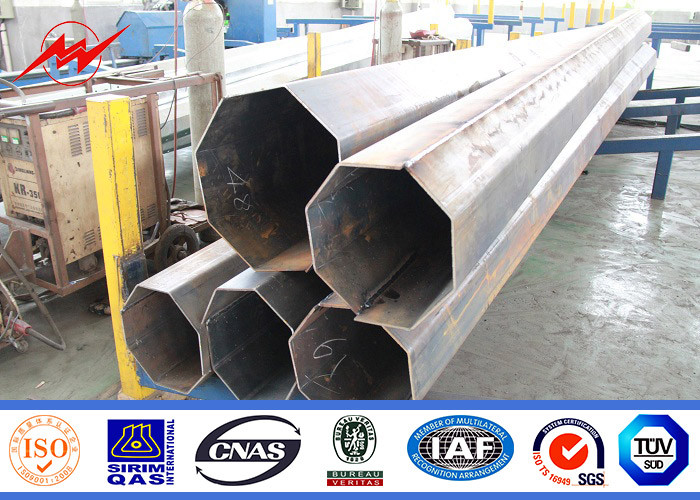

60ft 70ft 75ft 1200kg Galvanised Steel Posts For Transmission Power Line 0



Features:



1) Designed or improved for various kinds of power pole.

2) Material: Hot rolled steel(Q235,Q345,Q450).

3) Appearance:Hot dip galvanized or spray plastic or others(up to customer’s request).

4)Packing: Woven bag, Plastic bulble paper or Black blanket or others.

5) Shape: Octagonal, Polygonal or Tapered round.

6) Length: up to customer' request.

7) Thickness of bending plate: 2.5mm - 20mm.

8) welding:automatic.

9)Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance.



Product information



The power pole of our company are made from quality sheets through bending,forming, automatic welding, hot dip galvanization and powder coating. We owned advanced production-line, it included Flatting machine, Steel plate shearer, bending machine,Auto-closed up machine, submerged arc welding machine and powder coating line, and our workmanship and quality control was achieved high opinion from our clients.

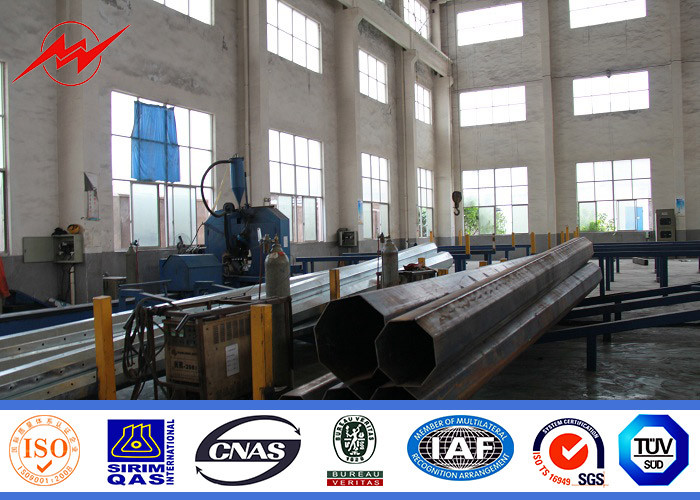

60ft 70ft 75ft 1200kg Galvanised Steel Posts For Transmission Power Line 1

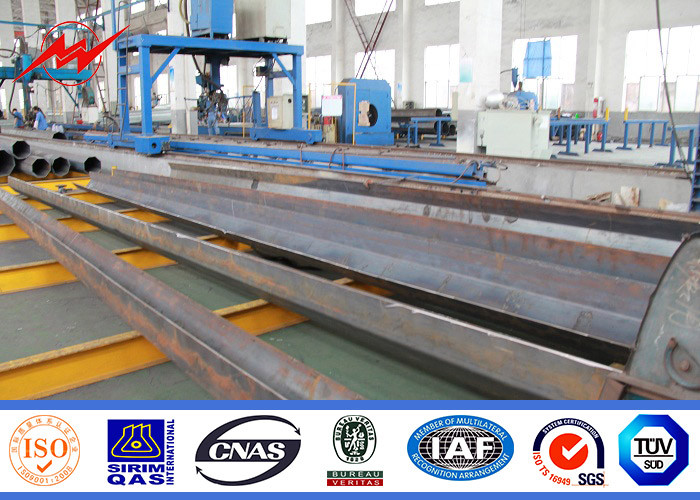

60ft 70ft 75ft 1200kg Galvanised Steel Posts For Transmission Power Line 2
